LowPro Studs and Inserts


LowPro Studs and Side Wall Inserts Option

The corrugations of shipping container vary in sizes and shapes from the side walls, end wall, and ceiling. Determine the surface you wish to insulate. Select the method best suited for your application. This option for the side wall best fits the Commercial-Industrial-Agricultural, interior or exterior applications; This is where space is at a premium and services can be surface mounted.


CX-LP LowPro Insulated Studs

Side Wall Inserts

LowPro Side Wall Material List
20' IEU Standard Sidewall - (CX LowPro/Insert - every other corruguation)
    • 1(CX-LP 46 Insulated stud Boxes = 46 pcs.)
    • 1 (Side Wall Inserts Boxes = 28 pcs. )
40' Standard Sidewall - (CX LowPro/Insert - every other corruguation)
    • 2(CX-LP 46 Insulated stud Boxes = 46 pcs.)
    • 2(Side Wall Inserts Boxes = 28 pcs. )

Order CX-LP 46

$295.00

$295.00 Add to cart

46 Studs = 92 Lineal Feet per box

Order CX-LP 15

$145.00

$145.00 Add to cart

15 Studs = 30 Lineal Feet per box

Side Walls Inserts (28 per box)

$85.00

$85.00 Add to cart

1 box (at $85.00/per box), containing a total of 28 Side Wall Inserts, covering up to 96 sq-ft.


CX LowPro

CX-LP LowPro Insulated Stud

One box of the CX-LP 46 Insulated studs will do 92 lineal feet of framing.

Dimensions

7 1/2in × 24in × 2in

Coverage

1.25 sq-ft

R-Value ASTM C518

R-8.5

Closed-Cell, injection-molded EPS

ASTM C578 Type II

Canadian Standards

CAN/ULC S701 Type 2

Foam Density

1.35 lbs per cubic foot

Polyproylene Insulated Studs

Surface

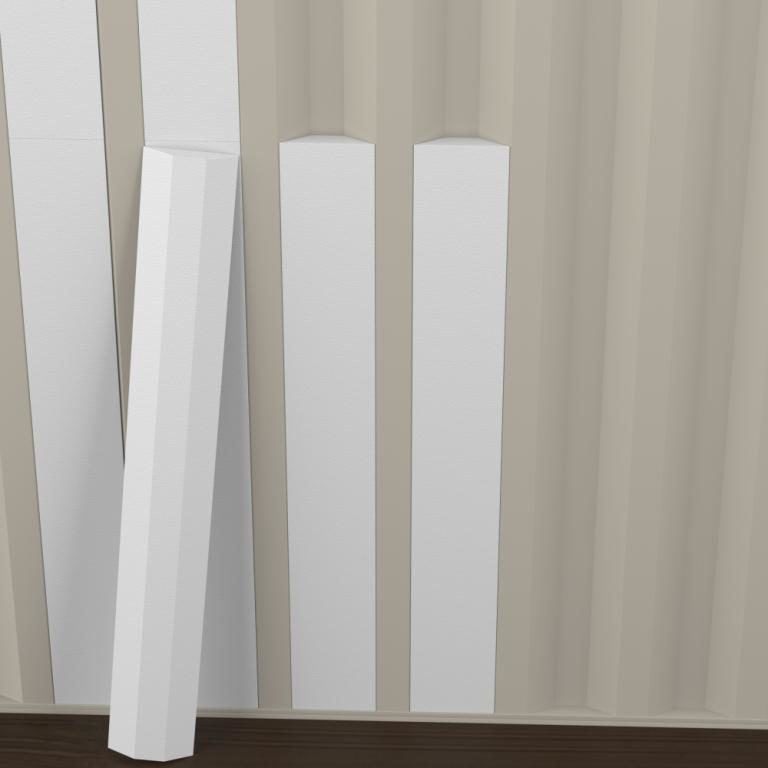

Side Wall Inserts
Buy Shipping Container Insulation Panels in Bakersfield, CA

Side Wall InSerts

One box of Side Wall Inserts covers 112 Lineal feet of corrugation.

48in x 7 3/4in x 1 1/4 in

2.5 sq-ft

R-5.3

ASTM C578 Type II

CAN/ULC S701 Type 2

1.35 lbs per cubic foot

N/A

LowPro Bundle Video

Our thinnest profile insulation engineered for Conex, shipping containers. The CX Low Profile stud only encroaches 3/4 of an inch per side on interior. Additionally, you will be able to attach any finishing material directly to our insulated stud without poking holes into your seaworthy shipping container.

Dimensions Weight
Product Code

Number of Parts

Per Box Dimension

Cubic Feet Per Box

 Weight Per Box

Length

Width

Height

CX -LP46

46 pcs = 92 lnft

14"

26"

44"

9.27

28 Lbs

 CSW

Side Wall Inserts

28 pcs 4' = 112 lnft

11"

25"

49"

7.80

12 Lbs

Ordering/Freight

Ordering/Freight

Estimating and ordering is simple measure and add together how many lineal feet of framing that your container requires to complete the job. Divide the total lineal footage by 2' long studed inserts.  Don’t overestimate, cut studs and inserts can be re-used.

We offer free curb side deliveries on all our orders, LIFT GATE SEVICE IS NOT INCLUDED. Please read through our shipping and purchasing policies before placing your order. You may upgrade your delivery for an additional charge.

Estimating Adhesive

Loctite PL Premium

LOCTITE® PL PREMIUM® POLYURETHANE CONSTRUCTION ADHESIVE

New Look Buy Shipping Container Insulation Panels in Monroe, NC

Green Guard Certified Adhesive:

In Canada the Glue is LePage PL Premium

Estimating Adhesive Quantity

Estimating the amount of adhesive YOU will use has variables beyond our control like condition of your walls and how accurate are you with a glue gun? The example below is for one side wall of a 20' standard height shipping container you will need approximately 3 tubes of the adhesive. That is in a perfect world. PL Premium 3x adhesive is applied in a ⅜" bead on the backside of the studs onto the ribbed surfaces.  We realize that a 3/8" bead of glue is very subjective. It is important that there is enough adhesive to squish the dovetails on the back side of the stud when pressed to the container wall. Adhesive follows the "Goldie Locks rule, too much, too little, and just right To verify that enough adhesive is used, press the panel into place. Pull the panel back and check to see if the adhesive has spread out beyond the full width of the stud. It is normal for the panel to "float out" from the side of the container when it is accommodating irregularities in the container walls. Additional adhesive may be necessary in some areas. If you are doing it just right you can expect that 1 large 28-fl oz tube will cover 18 of our 24" long studs or enough glue at a 3/8" bead to cover 36 foot long bead of glue.

Additionally you will have to estimate for glue around openings like windows and doors.

1 large 28-fl oz / 828 mL tube = 18 (24" studs or inserts)

  • CX 44 (22 panels with 2 studs each plus 8 end wall edges) = 52
  • 52 ÷ 18 = 3 tubes of the adhesive
LOCTITE® PL PREMIUM® POLYURETHANE CONSTRUCTION ADHESIVE Rough estimate for  28 ounce tubes of adhesive required
Container Side Walls End Wall Ceiling  Total w/o doors and floors Floors Swing Doors Total Estimate
20' Container - Standard 3 Per side total 6 2 1/2  6 1/2 13 7 3 23
20' Container - High Cube 3 Per side total 7 2 1/2  6 1/2 14 7 3 24
40' Container - Standard 6 Per side total  12 2 1/2  13 28 14 3 45
40' Container - High Cube 6 Per side total  13 2 1/2  13 29 14 3 46

Important Notice: Container Surface Temperature Applications

When bonding EPS and XPS foam insulation, use above 40°F (4°C) and avoid cure and surface temperatures above 90°F (32°C). Surfaces must be clean, dry and free of frost, grease, dust and other contaminants. Pre-fit all materials and protect finished surfaces. If using cartridge format, cut nozzle at a 45° angle to desired bead size and puncture inner seal. Be very careful not to allow Loctite® PL® Premium to cure on a finished surface.

Cold Weather Tips:

Interior Installation

Heating the interior of the container will not be sufficient for the adhesive to cure because the insulation panels will not allow heat to transfer to the container surface.  It is recommended to either move the container to a heated area or tent and heat the exterior until the adhesive has cured.

Exterior Installation

The interior of the container can be heated until the adhesive has cured.

Interior and Exterior Installation

Install the exterior panels first while heating the interior.  Allow adhesive to cure before installing interior insulation.

Overview / FeaturesTechnical Data / Directions

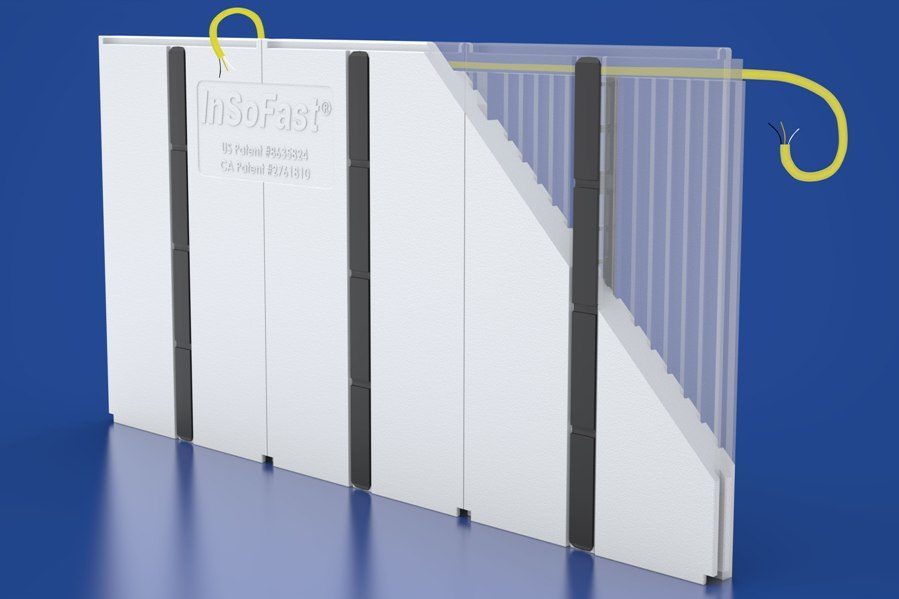

Flat Panel and InSerts Option UX2.0 or EXi2.5

Industrial-Agricultural Interior Spaces; Fast track fabrication method when container condition is less than perfect. This is a two part system using inserts to fill the air space and either flat panels to bridge over the wall. Determine the ammount of wall surface you wish to insulate. Select your flat panel preference and how many inserts you need to order.


Side Walls Inserts (28 per box)

$85.00

$85.00 Add to cart

1 box (at $85.00/per box), containing a total of 28 Side Wall Inserts, covering up to 96 sq-ft.


Estimating Inserts

  • 28 inserts 4' long (covers 12’of the container wall 8’)
    • One side of a 20' Standard needs 2 boxes of inserts
    • One side of a 20' High Cube needs 2 boxes of inserts
    • One side of a 40' Standard needs 4 boxes of  inserts
    • One side of a 40' High Cube needs 4 boxes of inserts
  • See Measurement Diagram

Flat Panels

Order UX 2.0 Flat Panels

$99.40

$99.40 Add to cart

1 box (at $99.40/per box), containing a total of 5 UX 2.0 Panels, covering up to 40 sq-ft.


Order EXi2.5 Flat Panels

$109.40

$109.40 Add to cart

1 box (at $109.40/per box), containing a total of 5 EXi 2.5 Panels, covering up to 40 sq-ft.

Flat Panel/Insert Material List

20' and 40" Standard and High Cube Side Wall

(Flat Panel/Insert - every corruguation)

  • In Boxes of 5 Panels 40 Square feet per box.
    • 4 Boxes Flat Panels* (for a 20' Standard 160 sq.ft. )
    • 5 Boxes Flat Panels (for a 20' High Cube 200 sq.ft.)
    • 8 Boxes Flat Panels (for a 40' container 320 sq.ft.)
    • 9 Boxes Flat Panels (for a 40' container 360 sq.ft.)
Side Wall Inserts
Buy Shipping Container Insulation Panels in Bakersfield, CA

Side Wall InSerts

One box of Side Wall Inserts covers 112 Lineal feet of corrugation.

48in x 7 3/4in x 1 1/4 in

2.5 sq-ft

R-5.3

ASTM C578 Type II

CAN/ULC S701 Type 2

1.35 lbs per cubic foot

N/A

Dimensions Weight
Product Code

Number of Parts

Per Box Dimension

Cubic Feet Per Box

 Weight Per Box

Length

Width

Height

CX -LP46

46 pcs = 92 lnft

14"

26"

44"

9.27

28 Lbs

 CSW

Side Wall Inserts

28 pcs 4' = 112 lnft

11"

25"

49"

7.80

12 Lbs

Ordering/Freight

Ordering/Freight

Estimating and ordering is simple measure and add together how many lineal feet of framing that your container requires to complete the job. Divide the total lineal footage by 2' long studed inserts.  Don’t overestimate, cut studs and inserts can be re-used.

We offer free curb side deliveries on all our orders, LIFT GATE SEVICE IS NOT INCLUDED. Please read through our shipping and purchasing policies before placing your order. You may upgrade your delivery for an additional charge.

Estimating Adhesive

Loctite PL Premium

LOCTITE® PL PREMIUM® POLYURETHANE CONSTRUCTION ADHESIVE

New Look Buy Shipping Container Insulation Panels in Monroe, NC

Green Guard Certified Adhesive:

In Canada the Glue is LePage PL Premium

Estimating Adhesive Quantity

Estimating the amount of adhesive YOU will use has variables beyond our control like condition of your walls and how accurate are you with a glue gun? The example below is for one side wall of a 20' standard height shipping container you will need approximately 3 tubes of the adhesive. That is in a perfect world. PL Premium 3x adhesive is applied in a ⅜" bead on the backside of the studs onto the ribbed surfaces.  We realize that a 3/8" bead of glue is very subjective. It is important that there is enough adhesive to squish the dovetails on the back side of the stud when pressed to the container wall. Adhesive follows the "Goldie Locks rule, too much, too little, and just right To verify that enough adhesive is used, press the panel into place. Pull the panel back and check to see if the adhesive has spread out beyond the full width of the stud. It is normal for the panel to "float out" from the side of the container when it is accommodating irregularities in the container walls. Additional adhesive may be necessary in some areas. If you are doing it just right you can expect that 1 large 28-fl oz tube will cover 18 of our 24" long studs or enough glue at a 3/8" bead to cover 36 foot long bead of glue.

Additionally you will have to estimate for glue around openings like windows and doors.

1 large 28-fl oz / 828 mL tube = 18 (24" studs or inserts)

  • CX 44 (22 panels with 2 studs each plus 8 end wall edges) = 52
  • 52 ÷ 18 = 3 tubes of the adhesive
LOCTITE® PL PREMIUM® POLYURETHANE CONSTRUCTION ADHESIVE Rough estimate for  28 ounce tubes of adhesive required
Container Side Walls End Wall Ceiling  Total w/o doors and floors Floors Swing Doors Total Estimate
20' Container - Standard 3 Per side total 6 2 1/2  6 1/2 13 7 3 23
20' Container - High Cube 3 Per side total 7 2 1/2  6 1/2 14 7 3 24
40' Container - Standard 6 Per side total  12 2 1/2  13 28 14 3 45
40' Container - High Cube 6 Per side total  13 2 1/2  13 29 14 3 46

Important Notice: Container Surface Temperature Applications

When bonding EPS and XPS foam insulation, use above 40°F (4°C) and avoid cure and surface temperatures above 90°F (32°C). Surfaces must be clean, dry and free of frost, grease, dust and other contaminants. Pre-fit all materials and protect finished surfaces. If using cartridge format, cut nozzle at a 45° angle to desired bead size and puncture inner seal. Be very careful not to allow Loctite® PL® Premium to cure on a finished surface.

Cold Weather Tips:

Interior Installation

Heating the interior of the container will not be sufficient for the adhesive to cure because the insulation panels will not allow heat to transfer to the container surface.  It is recommended to either move the container to a heated area or tent and heat the exterior until the adhesive has cured.

Exterior Installation

The interior of the container can be heated until the adhesive has cured.

Interior and Exterior Installation

Install the exterior panels first while heating the interior.  Allow adhesive to cure before installing interior insulation.

Overview / FeaturesTechnical Data / Directions

End Walls Inserts (20 per box)

$85.00

$85.00 Add to cart

1 box (at $85.00/per box), containing a total of 20 End Wall Inserts, covering up to 72 sq-ft.


Estimating

  • End Wall Inserts - 4’ (20/box) 72 s.f. coverage
      • One box per end wall
      • UX 2.0 or EX 2.5 (5 panels/box) 40 s.f.
        • You woud need 2 boxes UX 2.0 and one box of inserts
        • You woud need 2 boxes EX 2.5 and one box of inserts
      • See Measurement Diagram

Order UX 2.0 Flat Panels
$99.40

$99.40 Add to cart

1 box (at $99.40/per box), containing a total of 5 UX 2.0 Panels, covering up to 40 sq-ft.

Order EXi2.5 Flat Panels
$109.40

$109.40 Add to cart

1 box (at $109.40/per box), containing a total of 5 EXi 2.5 Panels, covering up to 40 sq-ft.

Ceilings Inserts (56 per box)

$85.00

$85.00 Add to cart

1 box (at $85.00/per box), containing a total of 56 Ceilings Inserts, covering up to 160 sq-ft.


Estimating Ceiling Inserts

  • Ceiling Inserts - 4’ (57/box) 160 s.f. coverage
    • UX 2.0 or EX 2.5 (5 panels/box) 40 s.f.

      • One 20 Container Ceiling would require 4 boxes of the UX 2.0 or EX 2.5 and 1 Box of ceiling insert
      • One 40 Container Ceiling would require 8 boxes of the UX 2.0 or EX 2.5 and 2 Box of ceiling insert
    •  See Measure Diagram

Order UX 2.0 Flat Panels
$99.40

$99.40 Add to cart

1 box (at $99.40/per box), containing a total of 5 UX 2.0 Panels, covering up to 40 sq-ft.

Order EXi2.5 Flat Panels
$109.40

$109.40 Add to cart

1 box (at $109.40/per box), containing a total of 5 EXi 2.5 Panels, covering up to 40 sq-ft.

CX44 Container Series

CX44 Tab Series

Panel Dimensions 24in × 44in × 2in-3 1/2in
Horizontal Chase 48in × 1in × ¾in
Vertical Chase 24in × ¾in × ¾in
Linear Coverage 7.33sq-ft
R-Value R-8.5
Insulated Studs Surface
Interlocking Edges
Cutting Indication Lines
Code Depth Raceways
Ready for Finishing
Interiors
Exteriors
Side Walls weld seam @ 44" O.C.
Exterior
Interior
Commercial
Industrial
Educational
Shipping Containers
Tiny Houses
LEED/Green Build
NFPA Assembies

Order CX44 Container Panel

$109.40

$109.40 Add to cart

1 box (at $109.40/per box), containing a total of 5 CX Container Panels, covering up to 36.67 sq-ft.

The CX 44 is specifically shaped insulation designed to fill the corrugation of a shipping container.


The CX 44 Panel 24" x 44"

  • Designed to fit 44" wide weld seam to weld seam.
  • CX44  Panel (5 panels/box) 36.67 s.f.
    • One 20’ high cube wall would require 5 boxes of the CX 44 panels
    • One 40’ high cube wall would require 10 boxes of the CX 44 panels
