Exterior: Walls Masonry

Here’s the product(s) that’s suited for your job

EXe 2.5

Panels

Closed-cell, injection-molded EPS foam body achieves R-10 insulation. Built into the front and back of the EX panel is a network of shingle-style capillary channels. They comply with Oregon Residential Speciality Code section R701.1 allowing the panel to serve as a certified rainscreen for exterior applications.


Product Details | Order »
Here’s documentation and guides catered to your project

How To Install Links:

  1. Installation Preparations - Basic Installation Procedure
  2. Installing Panels over Masonry Walls
  3. Corners Installation Inside and Outside
  4. Window Detailing - Other Through-Wall Penetrations
  5. Installing Exterior Finishes - Cold Weather Installation
  6. Retrofit Installations
  7. Increasing R-Value

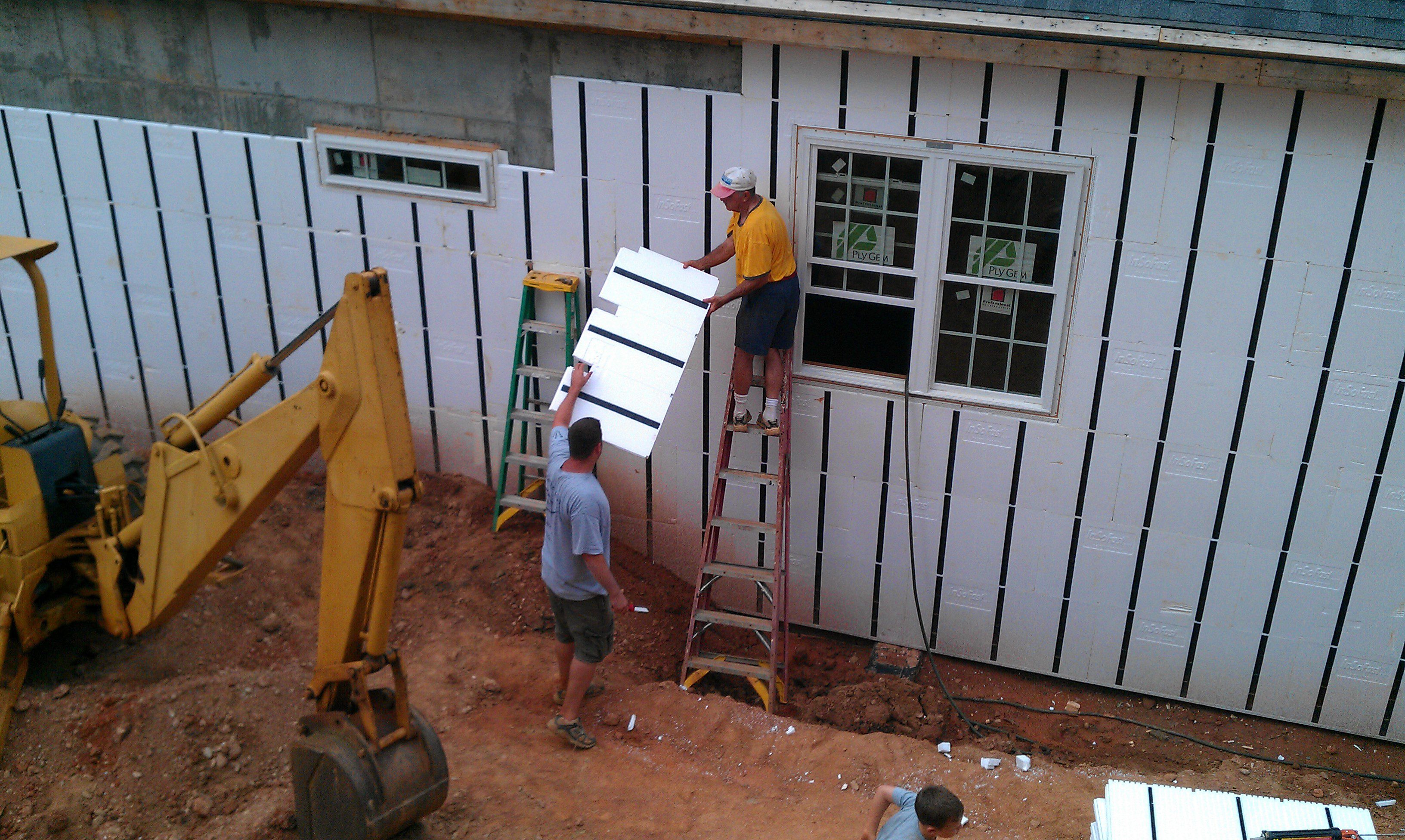

exterior-masonry UX2.0exterior- masonry-siding
