8ft-high ceilings make for a very easy InSoFast installation. Because each panel is 2ft high, you won’t need any modifications at the top of the wall. In fact, this is the case for any ceiling height evenly divisible by two. 6ft ceilings, 10ft ceilings, 24ft ceilings: no modification. But what do you do with an uneven ceiling height? You have to cut the panels.
Think of InSoFast panels as a carpentry shortcut for insulation and framing. It doesn’t have to be a masterpiece, it just has to work. The panels are designed to lock together in a tight pattern, but you shouldn’t feel discouraged from breaking this pattern if it makes more sense in your installation.
Cut, carve, and reshape the panels as much as your walls require. Any gaps, cracks or imperfections can be sealed later with expanding foam.
An imperfect ceiling height doesn’t change much about the rest of the installation procedure. You still stack panels from bottom to top, wall by wall.
Once you’ve reached the final row at the top of your wall, measure the distance between the ceiling (or joists) and the top-most “tongue” edge of the previous row of panels.
Note: Do not shape the panels to fit between floor joists. For information on how to properly insulate this area see our page: Technical > Interior Guides > Rim Joists
Measuring it by the “tongue” edge will give you a little extra space to be able to move the panel into place. Gaps and cracks should be sealed with an expanding foam later.
Pro Tip: You can get a good measurement by turning the panel upside-down and pressing its top-most edge against the ceiling. Make a mark directly on the panel where it meets the “tongue” edge of the previous row. When you flip the panel right-side up again, the mark will denote the height at which it should be cut in order to fit the imperfect space. See the video above for a visual demo.

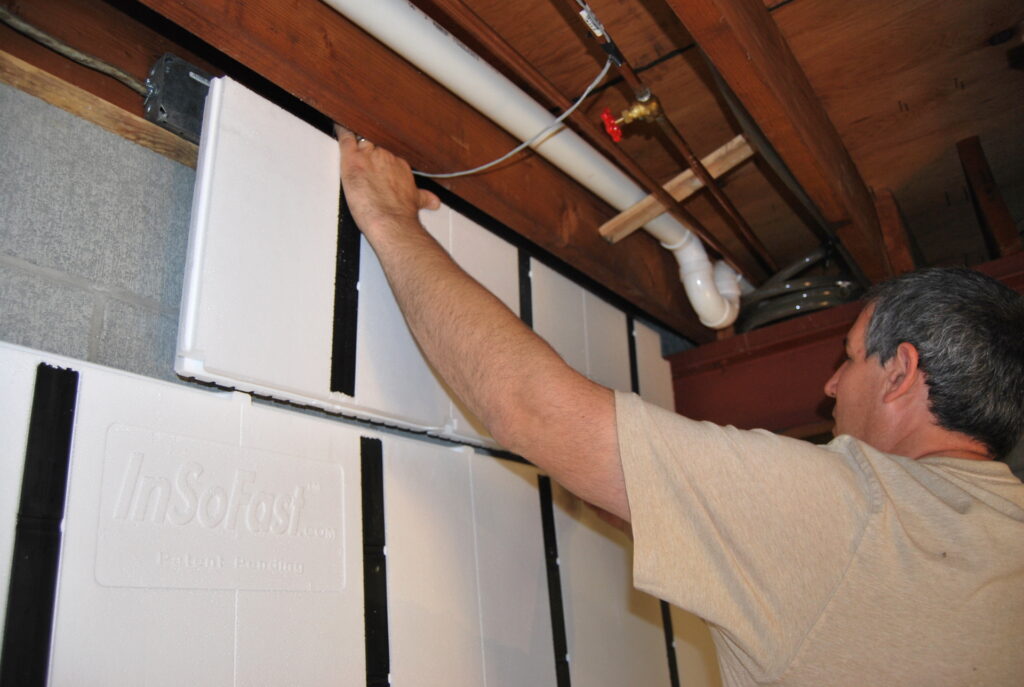

Use the measurement to cut the last row of panels horizontally. You will likely need a hand saw or power tool to slice through the embedded studs.
Install the “bottom half” of the newly cut panel in the final row. The bottom half will still include the interlocking “groove” edge that meets the “tongue” edge of the previous row.
Because your cut was made to the “tongue” edge, you should have a little extra room to place the panel. Gaps and cracks should be sealed with an expanding foam later.
Don’t discard any scraps made from cuts until you’ve completely finished your installation. InSoFast scraps are highly re-usable
If your scraps do not have a way of interlocking with the “tongue” edge of the previous row, you can use a razor blade to remove the tongue. By removing the tongue, you will have a more even block surface to fill-in with a scrap panel. Gaps and cracks should be sealed with an expanding foam later.
