Outside Corners

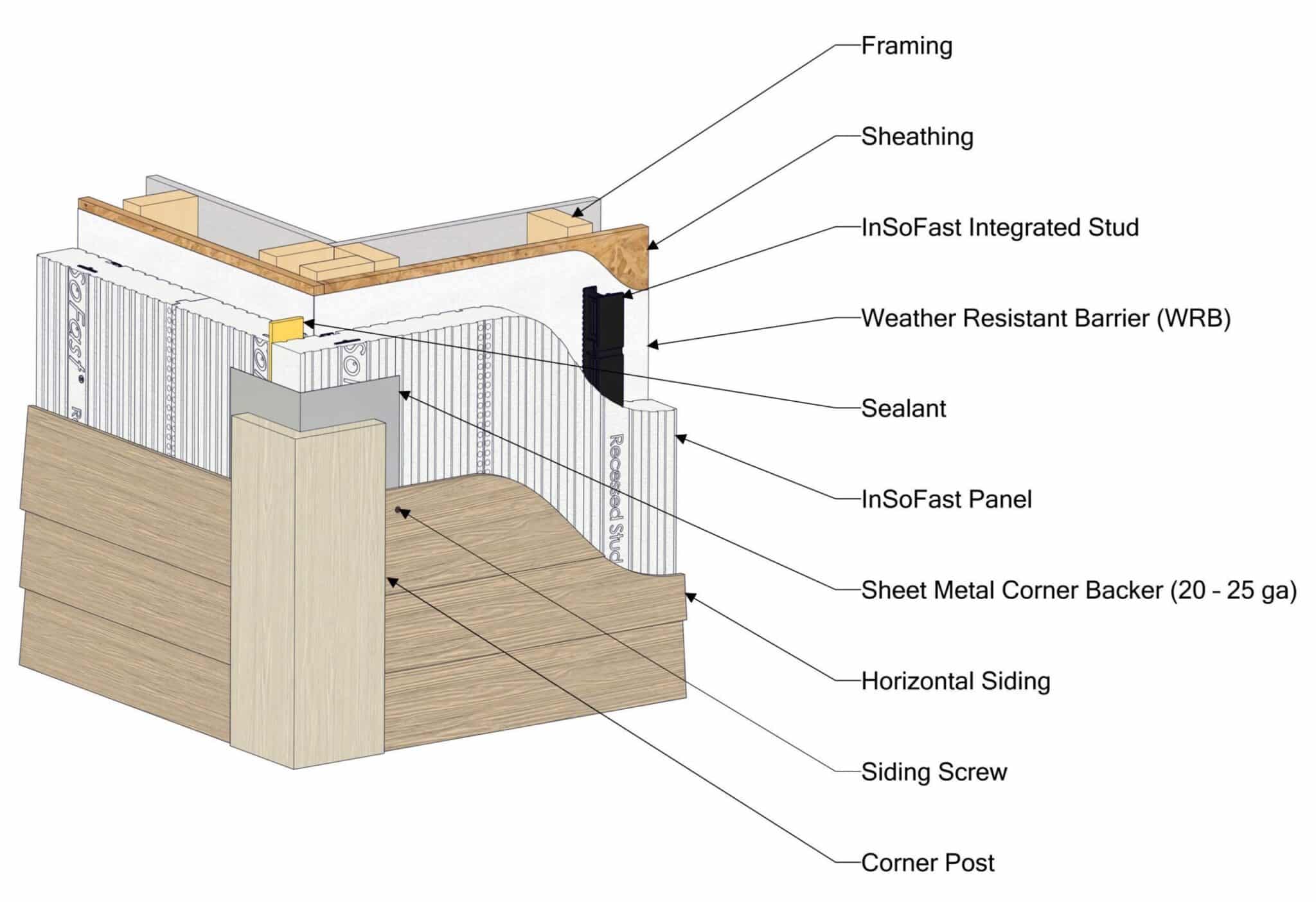

Corner with Sheet Metal Backer
Overlap the panels past the corner by the thickness of the panel (i.e. 2½” for EXe 2.5) creating an overlapping butt joint. Leave a ¼” gap at the butt joint for foam sealant. Corner posts can be attached with a 4” screws directly back to the framing when an InSoFast stud is not located near enough to the corner for siding attachment. Sheet metal flashing may be added behind the corner post for siding fastening at the corner post.
Sheetmetal Backer
No Backing Callouts
Corner with Wood Backing
Another option is to install 2x lumber with 1” foam board added to provide a solid 2-1/2” thick backing as needed. This is done prior to installing InSoFast panels.
Foam Over 2x Backer
Inside Corners
Corner with Sheet Metal Backer
Place the InSoFast panels together in the corners, leaving a ¼” gap at the butt joint for foam sealant. Install metal corner flashing to provide attachment for the corner post and siding.
Corner with Wood Backing
Another option is to install 2x lumber with 1” foam board added to provide a solid 2-1/2” thick backing as needed. This is done prior to installing InSoFast panels.
Inside Corner Wood
