Screw/Nail Attachment Pattern

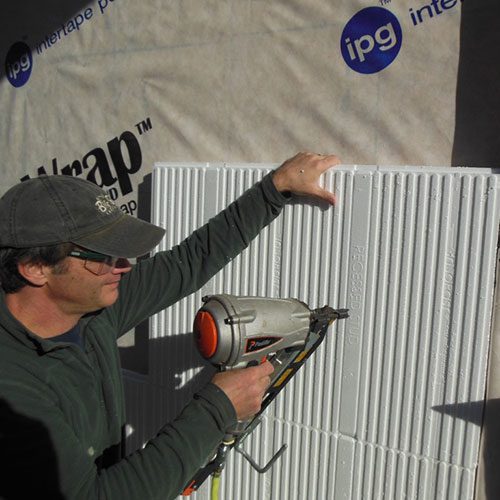

Using the indicator markings on the panel, screws are placed 12” o.c. along the InSoFast studs per code report. InSoFast panels are generally screwed in place, however, you may opt to use nail guns to install the panels and siding provided the temperature is above 60° F for the stud to accept nails. It is up to the contractor and/or building official to determine the suitability for the nails in regard to use, length, and spacing.
Adhesive/Glue Pattern
On the back of the panel, apply a 3/8″ bead of PL Premium 3X along the dove-tailed ribbing of each InSoFast stud. Rougher or uneven surfaces may require a thicker bead. Press panels firmly into place against the wall. On windy days, the panels may need supplemental bracing or mechanical attachment to secure the panels until the adhesive has set.
For 16” O.C. Framing
InSoFast studs are 16” o.c. Install the first panel so that the built-in studs line up with and attach to the wall’s studs.
16” o.c. Nailing Pattern
For 24” O.C. Framing
Attaching to 24” o.c. framing requires a screwable structural sheathing, such as OSB, plywood, or SIPs and requires the use of 8” o.c. indicator marks. The number of screws is dependent on wind load requirements.
24” o.c. Nailing Pattern
