One of the many reasons we recommend Loctite PL Premium is it has the GREENGUARD Certification. It is important to us that you use an adhesive that has low chemical emissions, improving the quality of the air in which the products are used.
Apply adhesive to the ribbed stud surface on the InSoFast panel/insulated stud. Press the bonding surfaces firmly together. The panels/studs may be repositioned within 30 minutes after applying the adhesive. If bonding two non-porous surfaces (such as InSoFast panel/studs, to metal or fiberglass), add water in the form of a very light or atomized spray from a plant mister bottle to the adhesive extruded on the stud, this accelerates the adhesive’s set time. When adding moisture re-positioning time is reduced. If needed use mechanical support for 24 hours while the adhesive cures. When bonding InSoFast panels/studs, avoid cure and surface temperatures above 90°F (32°C).
InSoFast panels were designed with simplicity in mind and we would argue that gluing them is not only the easiest method of installation but often the most effective. Third-party testing has shown the adhesive bond strength of our studs to have 108psi of holding power. This means each adhered panel is capable of holding over 5,000lbs!
Testing was conducted using Loctite PL Premium’s 3X Stronger Construction Adhesive, (in Canada it is marketed under the LePage PL Premium brand,) on clean concrete surfaces. It is the only adhesive we have tested. Other formulas and brands may not work as expected.
Important read the adhesive manufacture’s information before proceeding.
Important Notice: Container Surface Temperature Applications
When bonding EPS and XPS foam insulation, use above 40°F (4°C) and avoid cure and surface temperatures above 90°F (32°C). Surfaces must be clean, dry and free of frost, grease, dust and other contaminants. Pre-fit all materials and protect finished surfaces. If using cartridge format, cut nozzle at a 45° angle to desired bead size and puncture inner seal. Be very careful not to allow Loctite® PL® Premium to cure on a finished surface.
Cold Weather Tips:
Heating the interior of the container will not be sufficient for the adhesive to cure because the insulation panels will not allow heat to transfer to the container surface. It is recommended to either move the container to a heated area or tent and heat the exterior until the adhesive has cured.
The interior of the container can be heated until the adhesive has cured.
Interior and Exterior Installation
Install the exterior panels first while heating the interior. Allow adhesive to cure before installing interior insulation.

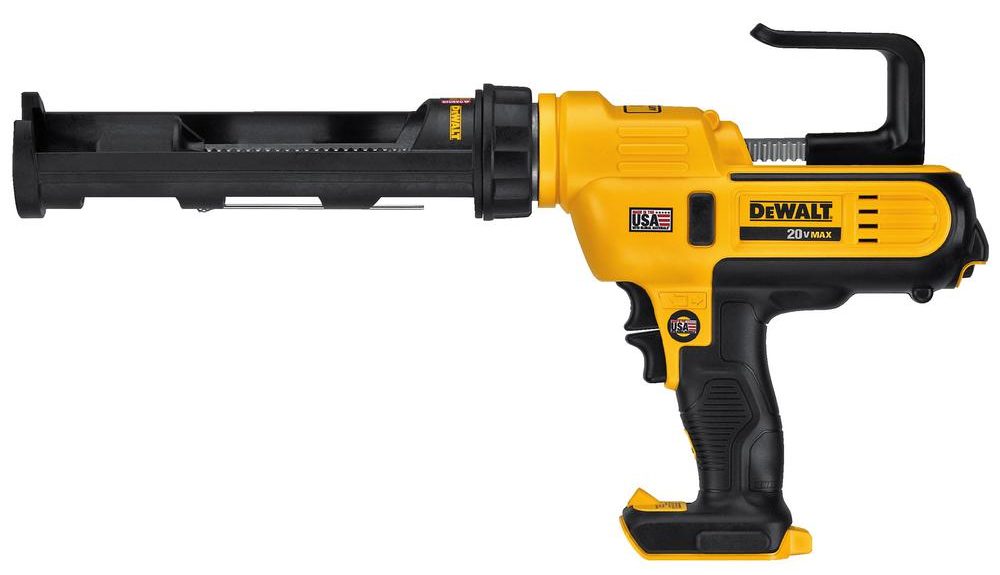

When purchasing the adhesive for your project, we recommend using the larger 28-fl oz / 828 mL tubes and a caulk gun to match in size. For larger projects, get a higher-quality caulk gun that’ll be easier to operate and give you more control with the flow of adhesive. You’ll thank yourself later. Quality guns usually have a built-in tip cutter and seal puncture tool. Expect to pay about $15.
Calculate the number of tubes necessary for your project (adhesive coverage may vary):
Even though the adhesive is odorless, it is important to note its strength and abilities. Always wear disposable gloves and never allow PL Premium to cure on a finished surface.
If you are unsure about the conditions of your walls, we recommend performing an adhesive test. Find a scrap 2×4 measuring at least 6 inches long and run a 3/8-inch bead of adhesive along it. Press the “test block” against the wall with one end resting on the floor to keep it from sliding down. Support it in place if necessary. You’ll need to wait 24-48 hours for the adhesive to cure, but keep in mind that PL Premium takes 14 days to reach it’s full strength.
When the curing time has passed you are ready to test the strength of the bond. Try to pry the test board off the wall. If you can manage to pull it off with your hands, you will need to mechanically fasten the panels to the wall.
When you begin your InSoFast installation, check to make sure you are using the right amount of glue. Pull back a freshly adhered panel and check for adhesive transfer to the wall. You should see about 1/4-inch wide adhesive transfer to the wall.
Do not install screws or mechanical fasteners until the adhesive has completely cured. (usually about 24hrs)
In many cases, construction adhesives are actually a more reliable method of attachment. In particular, Loctite’s 3X Stronger formula is designed to cure 3 times stronger than average solvent-based varieties. A single bead can outperform concrete screws spaced 6 inches apart.
PL Premium is not a solvent-based adhesive. It is compatible with all types of foam and it’s completely odor-free. Additionally, it does not shrink as it cures. This property allows it to act as a predictable “liquid shim” which can span and fill gaps of up to ⅜-in.
Cured or uncured, interior or exterior, moisture has no negative effect on PL Premium. In fact, it actually uses moisture to cure. The adhesive remains stable in all sorts of extreme freeze/thaw weather conditions.
Unlike traditional screw systems which can rust and wear with moisture, our chosen adhesive has a waterproof bond that is tested and approved to be a more durable alternative. Waterproofing materials like Dry-lok paint serves as an excellent primer that increases bond strength on concrete.
The back surface of the stud features ribbed dovetails for adhesive application. The front surface is flat and designed to be nailed or screwed. The InSoFast panel’s stud surface is exposed or embedded features three inset markers for attachment. The inset keeps the screw head flush for installation ease of the finishing material.
If you read the adhesives manufacturer’s application information it states that the glue will not stick to polypropylene, our stud is made from polypropylene. The glue bonds to steel, wood, concrete and many other materials at many 100’s of pounds of pull-off.
The design of the dovetail glue strip accounts for this non stickiness. The polyurethane adhesive expands around dovetailed “T” strip stud and as it cures it will (harden) cast-in-place the InSoFast stud. This cast-in-place function is one of our most important patent claims.
Like the name of the adhesive manufacturer, Loctite, our engineered patented stud is designed to form a tightly locked bond. When a bead of adhesive is run along the stud’s ribbing it forms hundreds of solid interlocking dovetails, a design renowned for high tensile strength. Adhesive also bypasses the structural stress associated with drilling holes in a wall.
As further assurance, we worked with a third-party independent testing facility to evaluate the power of our engineered stud/adhesive bond. The astounding results concluded the safety factor at over 400 times the weight of standard ½-in drywall. Most structural beam systems are engineered to a safety factor of only 2-3 times their rated loading.
It’s easy! PL Premium remains re-positionable for up to 20 minutes without disrupting its bond strength. In 24 hours, your project is ready for drywall.
We designed InSoFast Panels with you in mind and PL Premium 3X Stronger was part of our decision process. We want your InSoFast project to be as simple as possible to install, so that you can quickly experience the benefits of an insulated home and/or office.
