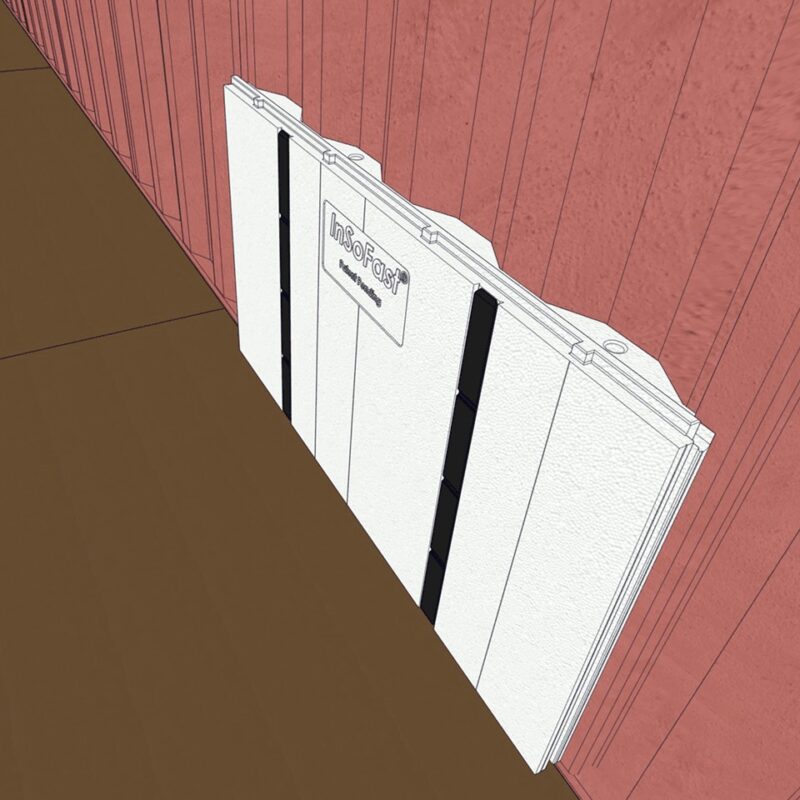

The CX 44 is specifically shaped insulation designed to fill the corrugation of a shipping container.
CX44 Insulated Shipping Container Panel with Studs |
|
CX44 Panel Details – dwg – dxf – pdf | |
Submittal |
|
Dimensions |
24in × 44in × 2in-3 1/2in |
Horizontal Chase |
48in × 1in × ¾in |
Vertical Chase |
24in × ¾in × ¾in |
Coverage |
7.33 sq-ft |
R-Value ASTM C518 |
R-11 |
ASTM C578 Type II |
Closed-Cell, injection-molded EPS |
CAN/ULC S701 Type 2 |
|
ASTM C303 Foam Density |
1.35 lbs per cubic foot |
ASTM E96 Water Vapor Permeability |
(Class III Vapor Retarder) 3.5perm/in |
Maximum Service Temperature (long term) |
167°F = 75 Celsius (°C) |
Surface |
|
Interlocking Edges |
√ |
Service Raceways |
√ |
Engineered for Shipping Containers |
√ |
Exterior Application |
√ |
Interiors Application |
√ |
*The high-strength co-polymer plastic studs on 22-inches centers provide a positive attachment stud for finishing the container. The ribbed dovetails surface provides a cast-in-place adhesive applications against the metal surfaces.
Estimating and ordering is simple measure and add together how many square feet of side wall framing that your container requires to complete the job. Divide the total wall (xx) footage by 36.67 sq-ft. this will determine the number of boxes needed. Round up to the next whole number. Don’t overestimate, cut studs, panels and inserts can be re-used.
Complete Container Insulation Panels; | 20′ Standard | 20′ High Cube | 40′ Standard | 40′ High Cube |
Sidewall | Sidewall | Sidewall | Sidewall | |
CX44 Interior Sidewall (2) Sidewalls | (20′ ) CX44-Bundle | (20′ HC) CX44-Bundle | (40′) CX44-Bundle | (40′ HC) CX44-Bundle |
Box Total: | 9 | 10 | 18 | 20 |
Flat Panel/Insert Endwall | Endwall | Endwall | Endwall | Endwall |
2.0 Flat Panel (UX) | 2 | 2 | 2 | 2 |
Inserts: Endwall | 1 | 1 | 1 | 1 |
Box Total: | 3 | 3 | 3 | 3 |
Ceiling 2.0 Flat Panel-Bundle | Ceiling | Ceiling | Ceiling | Ceiling |
2.0 Flat Panel (UX) | 4 | 4 | 8 | 8 |
Inserts: Ceilings | 1 | 1 | 2 | 2 |
Box Total: | 5 | 5 | 10 | 10 |
Door 2.5 Flat Panel-Bundle (2) Doors | Door | Door | Door | Door |
2.5 Flat Panel (EXe) | 2 | 2 | 2 | 2 |
Floor 2.0 Flat Panel-Bundle | Floor | Floor | Floor | Floor |
2.0 Flat Panel (UX) | 4 | 4 | 8 | 9 |
|
|
|
|
|
Total Box Count | 23 | 24 | 41 | 44 |
Estimating the amount of adhesive YOU will use has variables beyond our control like condition of your walls and how accurate are you with a glue gun?
1 large 28-fl oz. / 828 mL tube = 18 (24″ studs or inserts)
POLYURETHANE CONSTRUCTION ADHESIVE Rough estimate for 28 ounce tubes of adhesive required |
|||||||
Container | Side Wall | End Wall | Ceiling | Total Walls & Ceiling | Floors | Swing Doors | Total Estimate |
20′- Standard | 3 | 2 1/2 | 6 1/2 | 13 | 1 1/2 | 3 | 18 |
20′- High Cube | 3 | 2 1/2 | 6 1/2 | 14 | 1 1/2 | 3 | 19 |
40′- Standard | 6 | 2 1/2 | 13 | 28 | 3 | 3 | 34 |
40′- High Cube | 6 | 2 1/2 | 13 | 29 | 3 | 3 | 34 |
When bonding EPS and XPS foam insulation, use above 40°F (4°C) and avoid cure and surface temperatures above 90°F (32°C). Surfaces must be clean, dry and free of frost, grease, dust and other contaminants. Pre-fit all materials and protect finished surfaces. If using cartridge format, cut nozzle at a 45° angle to desired bead size and puncture inner seal. Be very careful not to allow Loctite® PL® Premium to cure on a finished surface.
Please read all the current Shipping, Purchasing & Returns *
Product Code |
Number of Parts |
Box Dimension |
Cubic Feet Per Box |
Weight Per Box |
||
Length |
Width |
Height |
||||
CX44 |
5 Panels 36.67 SqFt |
14″ |
25″ |
50″ |
10.85 |
22 Lbs |
It’s easy to increase your R-Value beyond R-10 while maintaining the engineered benefits of the continuous InSoFast panels. Just start with a base of feature-rich InSoFast panels.
