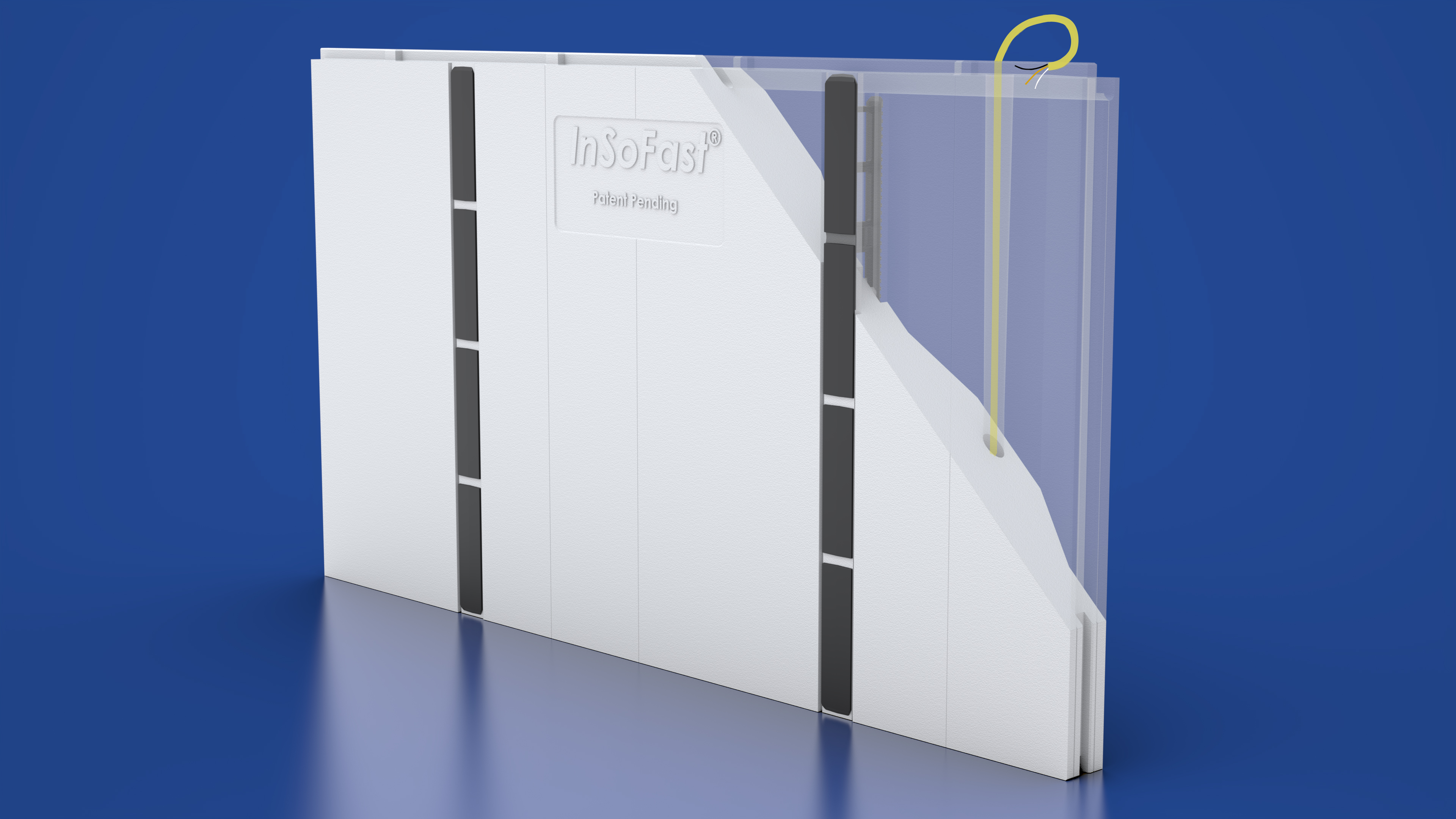

CX44 Series Panels
Insulation designed to fill the corrugation of a shipping container.
CX44 Panel Specs
- R-11 Continuous Insulation
- Built-in Studs
- Tongue and Groove Interlocks
- Vapor/Moisture Control
- Service Raceways
- Engineered for Shipping Containers
|
CX44 Insulated Shipping Container Panel with Studs |
|
|
Dimensions |
24in × 44in × 2in-3 1/2in |
| Horizontal Chase |
48in × 1in × ¾in |
|
Vertical Chase |
24in × ¾in × ¾in |
|
Coverage |
7.33 sq-ft |
|
R-Value ASTM C518 |
R-11 |
| ASTM C578 Type II |
Closed-Cell, injection-molded EPS |
|
Canadian Standards CAN/ULC S701 Type 2 |
|
|
ASTM C303 Foam Density |
1.35 lbs per cubic foot |
|
ASTM E96 Water Vapor Permeability |
(Class III Vapor Retarder) 3.5perm/in |
| Maximum Service Temperature (long term) |
167°F = 75 Celsius (°C) |
|
Surface |
|
|
Interlocking Edges |
√ |
|
Service Raceways |
√ |
|
Engineered for Shipping Containers |
√ |
|
Exterior Application |
√ |
|
Interiors Application |
√ |
2.0 Flat Panel (UX)
Flat panel closed-cell insulation designed for floors, ceilings and end walls.
FP 2.0 Panel Specs
- R-8.5 Continuous Insulation
- Built-in Studs
- Tongue and Groove Interlocks
- Vapor/Moisture Control
- Service Raceways
- Engineered for Shipping Containers
|
FP-2.0RW Insulated Flat Panel with Studs |
|
|
2.0 Panel Details |
dxf - pdf |
|
|
|
|
Architectural Submittal |
|
|
Panel Dimensions |
24in × 48in × 2in |
|
Horizontal Chase |
48in × 1in × ¾in |
| Vertical Chase | 24in × ¾in × ¾in |
| Drainage Channel | 24in × ¼in × ¼in |
| Coverage |
8sq-ft |
| R-Value ASTM C518 |
R-8.5 |
| Comparable Performance |
2×4 Wall/R-13 Batts |
| ASTM C578 Type II |
Closed-Cell injection-molded EPS |
| CAN/ULC S701 Type 2 | |
| ASTM C303 Foam Density |
1.35 lbs per cubic foot |
| ASTM E96 Water Vapor Permeability |
(Class III Vapor Retarder) 3.5perm/in |
|
Maximum Service Temperature (long term) |
167°F = 75 Celsius (°C) |
| Co-Polymer Stud |
Surface |
| Interlocking Edges |
√ |
| Cutting Indication Lines |
√ |
| Code Depth Raceways |
√ |
| Ready for Finishing |
√ |
| Interiors |
√ |
| Exteriors |
√ |
| Moisture Control |
Back Channels |
2.5 Flat Panel (EX)
Flat panel closed-cell insulation for doors, floors, walls and exterior applications.
FP 2.5 Panel Specs
- R-10.5 Continuous Insulation
- Built-in Studs
- Tongue and Groove Interlocks
- Vapor/Moisture Control
- Service Raceways
- Engineered for Shipping Containers
|
FP- 2.5 Insulated Flat Panel with Studs |
|
| FP-2.5 Panel Details | dfx - dwg - pdf |
| FP-2.5 zip file | |
| Architectural Submittal | |
| Panel Dimensions | 24in × 48in × 2½in |
| Horizontal Chase |
48in × 1in × ¾in |
|
Vertical Chase |
24in × ¾in × ¾in |
| Drainage Channel | 24in × ¼in × ¼in |
|
Coverage |
8 sq-ft |
|
R-Value ASTM C518 |
R-10.5 |
| Comparable Performance |
2×4 Wall/R-15 Batts |
| ASTM C578 Type II |
Closed-Cell injection-molded EPS |
|
CAN/ULC S701 Type 2 |
|
|
ASTM C303 Foam Density |
1.35 lbs per cubic foot |
|
ASTM E96 Water Vapor Permeability |
(Class III Vapor Retarder) 3.5perm/in |
|
Maximum Service Temperature (long term) |
167°F = 75 Celsius (°C) |
|
Recessed ½in below Surface |
|
|
Interlocking Edges |
√ |
|
Service Raceways |
√ |
| Cutting Indication Lines |
√ |
|
Designed Ready for Finishing Attachment |
Interior/Exterior |
|
Exterior Rated Moisture Control |
ORSC, Section R703.1.1-approved |
|
Exterior Application |
√ |
|
Interiors Application |
√ |

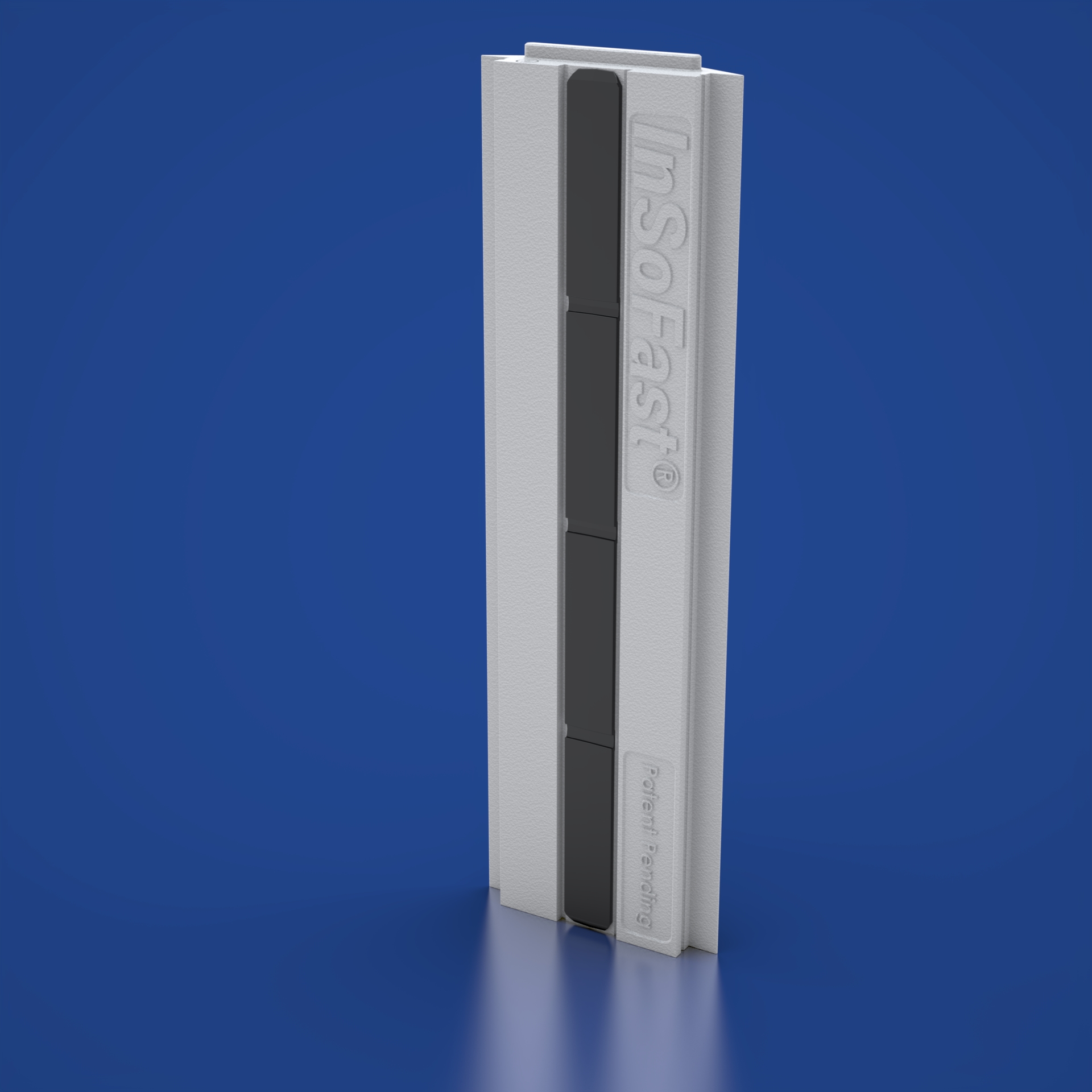

CX LowPro Sidewall Stud
Designed to fill and insulate the corrugation providing attachment for finishes. CX-LP insulated stud for shipping containers retrofits.
LowPro Specs
- Engineered for Shipping Containers
- R-8.5 Continuous Insulation
- Thinnest Insulation Profile
- Closed-cell EPS Insulation
- Stable insulation zero thermal drift
- Self-flashing Studs
- Adaptable Attachment
- Adhesive Application
- Tongue and Groove Interlocks
The high-strength co-polymer plastic studs on 11 or 22-inches centers provide a positive attachment stud for finishing the container. The ribbed dovetails surface provides for adhesive applications against the metal surfaces.
 |
|||||
|
CX-LP LowPro Insulated Stud |
|||||
| LowPro-Insulated Stud Sidewall Architectural Dimensions |
|
||||
|
7 1/2in × 24in × 2in |
|||||
|
Coverage |
1.25 sq-ft |
||||
|
R-Value ASTM C518 |
R-8.5 |
||||
| ASTM C578 Type II |
Closed-Cell, injection-molded EPS |
||||
|
Canadian Standards CAN/ULC S701 Type 2 |
|||||
|
Foam Density |
1.35 lbs per cubic foot |
||||
|
Surface |
|||||
|
Interlocking Edges |
√ |
||||
|
Interiors |
√ |
||||
|
Exterior |
√ |
||||
Side Wall Inserts
InSerts custom designed to fit the depths of the container’s side corrugated walls, minimizing hidden air spaces.
SW Inserts Specs
| Side Walls infill | √ |
| Exterior | √ |
| Interior | √ |
| Shipping Containers | √ |
 |
|
|
Side Wall InSerts One box of Side Wall Inserts covers 112 Lineal feet of corrugation. |
|
| Sidewall Insert Design Details | |
|
Dimensions |
|
| Coverage |
2.5 sq-ft |
| R-Value ASTM C518 |
R-5.3 |
| Closed-Cell, injection-molded EPS |
ASTM C578 Type II |
|
Canadian Standards |
CAN/ULC S701 Type 2 |
|
Foam Density |
1.0 lbs per cubic foot |
CX LowPro Endwall
Designed to fill and insulate the corrugation providing attachment for finishes. CX-LP Endwall insulated stud for shipping containers retrofits.
LowPro Endwall Specs
InSoFast engineered system of continuous insulation is perfectly suited for shipping container fabrication.
- Simple to install
- Why work so hard?
- Adaptable Attachment
- No Special Tools Needed
- Built-in Studs*
- Engineered Framing Studs
- Non-conductive stud framing
- No energy penalty for the studs
- Non corrosive stud...non rusting
- Adhesive Application no holes
- Closed-cell high pressure fused EPS Insulation
- R-11 Continuous Insulation
- Tongue and Groove Interlocks
- Engineered for Shipping Containers
- Lives up to its name: In So Fast
*The high-strength co-polymer plastic studs on variable 11 - 22 inches on centers provide a positive attachment stud for finishing the container. The ribbed dovetails surface provides a cast-in-place adhesive applications against the metal surfaces.
 |
|||||
|
LP-EW LowPro Insulated Stud One box of the LP-EW 22 Insulated studs will do 44 lineal feet of framing. |
|||||
|
LowPro-Insulated Stud Endwall Architectural Dimensions |
|
||||
|
Dimensions |
5 1/2in × 24in × 2 1/2 in |
||||
|
Coverage |
1.00 sq-ft |
||||
|
R-Value ASTM C518 |
R-10.5 |
||||
| ASTM C578 Type II |
Closed-Cell, injection-molded EPS |
||||
|
Canadian Standards CAN/ULC S701 Type 2 |
|||||
|
ASTM C303 Foam Density |
1.35 lbs per cubic foot |
||||
|
ASTM E96 Water Vapor Permeability |
(Class III Vapor Retarder) 3.5perm/in |
||||
| Maximum Service Temperature (long term) |
167°F = 75 Celsius (°C) |
||||
|
Surface |
|||||
|
Interlocking Edges |
√ |
||||
|
Engineered for Shipping Containers |
√ |
||||
|
Exterior Application |
√ |
||||
|
Interiors Application |
√ |
||||
Endwall Inserts
InSerts custom designed to fit the depths of the container’s end wall corrugations, minimizing hidden air spaces.
EW Insert Specs
| End Walls infill | √ |
| Exterior | √ |
| Interior | √ |
| Shipping Containers | √ |
|
|||
|
Endwall Inserts End Wall Inserts or the container's nose corrugation. One box of Inserts covers the end wall. |
|||
| Endwall Insert Architectural Dimensions |
|
||
| Insert Dimensions See Diagram | 5 1/4 in × 48in × 1 5/8 in | ||
| Coverage per pcs | 1.75 sq-ft | ||
| One Box -20 inserts 4' long | (covers 35’ Sq-ft) | ||
| Interior side of the end wall | 1 boxes | ||
| Exterior side of a the end wall | 1 boxes | ||
| R-Value ASTM C518 | R-4 per in |
||
| ASTM C578 Type II |
Closed-Cell, injection-molded EPS |
||
| Canadian Standard CAN/ULC S701 Type 2 | |||
| Foam Density | 1 lbs per cubic foot | ||
| Interiors | √ |
||
| Exteriors | √ |
||
| Shipping Containers | √ | ||
Ceiling Inserts
InSerts custom designed to fit the depths of the container’s ceiling corrugations, minimizing hidden air spaces. There are 56 Ceiling Inserts per box. The Ceiling Inserts are a part of a comprehensive approach of insulating a shipping container.
Ceiling Insert Specs
|
Ceiling InSerts One box of Ceiling Inserts covers 224 Lineal feet of indents. |
|
| Dimensions | 48in x 4 5/8in x 13/16 in |
| Coverage | 1.7 sq-ft |
| R-Value ASTM C518 | R-3.18 |
| ASTM C578 Type II | Closed-Cell, injection-molded EPS |
| Canadian Standard CAN/ULC S701 Type 2 | |
| Foam Density | 1 lbs per cubic foot |
| Ceiling infill | √ |
| Interior | √ |
| Shipping Containers | √ |
Corner Post Insert
Insert designed to fit the unique geometries of the inside corner corrugations, minimizing hidden air spaces. One box is enough material to do both corners, order either a standard or high Cube corner post. The inserts are a part of a comprehensive approach of insulating a shipping container.
Corner Post Specs
 |
|
|
(I-EWCK) = 1 End Wall Corner Inserts - interior application End Wall corner Inserts or the container's nose corrugation. One box of Inserts covers the end wall. |
|
| Dimensions | 5 1/4 in × 45 1/4in × 1 5/8 in |
| Coverage per boxed unit | One Set of inside corners |
| One Box - 8 pcs foam inserts | (covers inside corners) |
| Interior side of exposed foam the end wall | 2 in thick |
| Inside Metal Corner | (covers inside corners) |
| Inside fastening width and length | 1 3/4 in x 1 3/4in x 45 1/4in |
| R-Value ASTM C518 | R-4.5 per in |
| ASTM C578 Type II |
Closed-Cell, injection-molded EPS |
| Canadian Standard CAN/ULC S701 Type 2 | |
| Foam Density | 1.5 lbs per cubic foot |
| Interiors | √ |
| Shipping Containers | √ |
| Corner Post Insert | √ |
| Interior | √ |
| Shipping Containers | √ |
