MAX 3.75 RW Interior/Exterior
3 3/4 inch thick R-15.9 flat panel closed-cell insulation for, floors, walls, interior and exterior applications.
The MAX 3.75 RW is 3¾ in thick closed-cell, injection-molded EPS foam panel that achieves R-15.9 insulation. The MAX 3.75 RW is a universal super insulated flat panel, optimized for interior and exterior finishing. The MAX 3.75 RW flat panel will work on floors, walls, ceilings.
- R-15.9 Continuous Insulation
- Built-in Studs
- Tongue and Groove Interlocks
- Vapor/Moisture Control
- Service Raceways
- Engineered for interior or exteriors applications
|
MAX 3.75 Insulated Flat Panel with Studs |
|
| FP-3.75 Panel Details | dfx - dwg - pdf |
| FP-3.75 zip file | |
| Architectural Submittal | |
| Panel Dimensions | 24in × 48in × 3¾in |
| Sealed Horizontal Chase 24" o.c. |
48in × 1in × ¾in |
|
Sealed Vertical Chase 16" o.c. |
24in × ¾in × ¾in |
| Drainage Channel | 24in × ¼in × ¼in |
|
Coverage |
8 sq-ft |
|
R-Value ASTM C518 |
R-15.9 |
| Outperforms |
2×4 Wall/R-20 Batts |
|
ASTM C578 Type II CAN/ULC S701 Type 2 |
Closed-Cell injection-molded EPS |
|
ASTM C303 Foam Density |
1.35 lbs per cubic foot |
|
ASTM E96 Water Vapor Permeability |
(Class III Vapor Retarder) 3.5perm/in |
|
Maximum Service Temperature (long term) |
167°F = 75 Celsius (°C) |
|
Recessed ½in below Surface |
|
|
Interlocking Edges |
√ |
|
Service Raceways |
√ |
| Cutting Indication Lines |
√ |
|
Designed Ready for Finishing Attachment |
Interior/Exterior |
|
Exterior Rated Moisture Control |
ORSC, Section R703.1.1-approved |
|
Exterior Application |
√ |
|
Interiors Application |
√ |
2.0 RW Interior
2 inch thick R-8.5 flat panel closed-cell insulation designed for floors, ceilings and walls.
The FP-2.0RW (UX) is a 2″ thick closed-cell, injection-molded EPS foam panel that achieves R-8.5 insulation. The FP-2.0RW is our thinnest flat panel, optimized for flat surface interior finishing. The 2.0 flat panel will work on floors, walls, ceilings. It is a good choice as a sub-flooring base panel.
- R-8.5 Continuous Insulation
- Built-in Studs
- Tongue and Groove Interlocks
- Vapor/Moisture Control
- Service Raceways
- Engineered Simplicity
|
FP-2.0 RW Flat Panel with Studs |
|
|
2.0 Panel Details UX2.0 zip file |
dxf - pdf |
|
Architectural Submittal |
|
|
Panel Dimensions |
24in × 48in × 2in |
|
Horizontal Chase |
48in × 1in × ¾in |
| Vertical Chase | 24in × ¾in × ¾in |
| Drainage Channel | 24in × ¼in × ¼in |
| Coverage |
8sq-ft |
| R-Value ASTM C518 |
R-8.5 |
| Comparable Performance |
2×4 Wall/R-13 Batts |
| ASTM C578 Type II |
Closed-Cell injection-molded EPS |
| CAN/ULC S701 Type 2 | |
| ASTM C303 Foam Density |
1.35 lbs per cubic foot |
| ASTM E96 Water Vapor Permeability |
(Class III Vapor Retarder) 3.5perm/in |
|
Maximum Service Temperature (long term) |
167°F = 75 Celsius (°C) |
| Co-Polymer Insulated Stud |
Surface |
2.5 RW Interior
2 1/2 inch thick R-10.5 flat panel closed-cell insulation for doors, floors, walls, and ceiling applications.
The FP-2.5RW (EXi) is a 2 1/2" thick closed-cell, injection-molded EPS foam panel that achieves R-10.5 insulation. The FP-2.5RW is a flat panel, optimized for flat surface interior finishing with deeper electrical option and window framing. The 2.5 flat panel will work on floors, walls, ceilings. It is a good choice as a sub-flooring base panel.
- R-10.5 Continuous Insulation
- Built-in Studs
- Tongue and Groove Interlocks
- Vapor/Moisture Control
- Service Raceways
- Engineered for Shipping Containers
|
FP- 2.5 RW Flat Panel with Studs |
|
| FP-2.5 RW Panel Details | dfx - dwg - pdf |
| FP-2.5 zip file | |
| Architectural Submittal | |
| Panel Dimensions | 24in × 48in × 2½in |
| Horizontal Chase |
48in × 1in × ¾in |
|
Vertical Chase |
24in × ¾in × ¾in |
| Drainage Channel | 24in × ¼in × ¼in |
|
Coverage |
8 sq-ft |
|
R-Value ASTM C518 |
R-10.5 |
| Comparable Performance |
2×4 Wall/R-15 Batts |
| ASTM C578 Type II |
Closed-Cell injection-molded EPS |
|
CAN/ULC S701 Type 2 |
|
|
ASTM C303 Foam Density |
1.35 lbs per cubic foot |
|
ASTM E96 Water Vapor Permeability |
(Class III Vapor Retarder) 3.5perm/in |
|
Maximum Service Temperature (long term) |
167°F = 75 Celsius (°C) |
|
Recessed ½in below Surface |
|

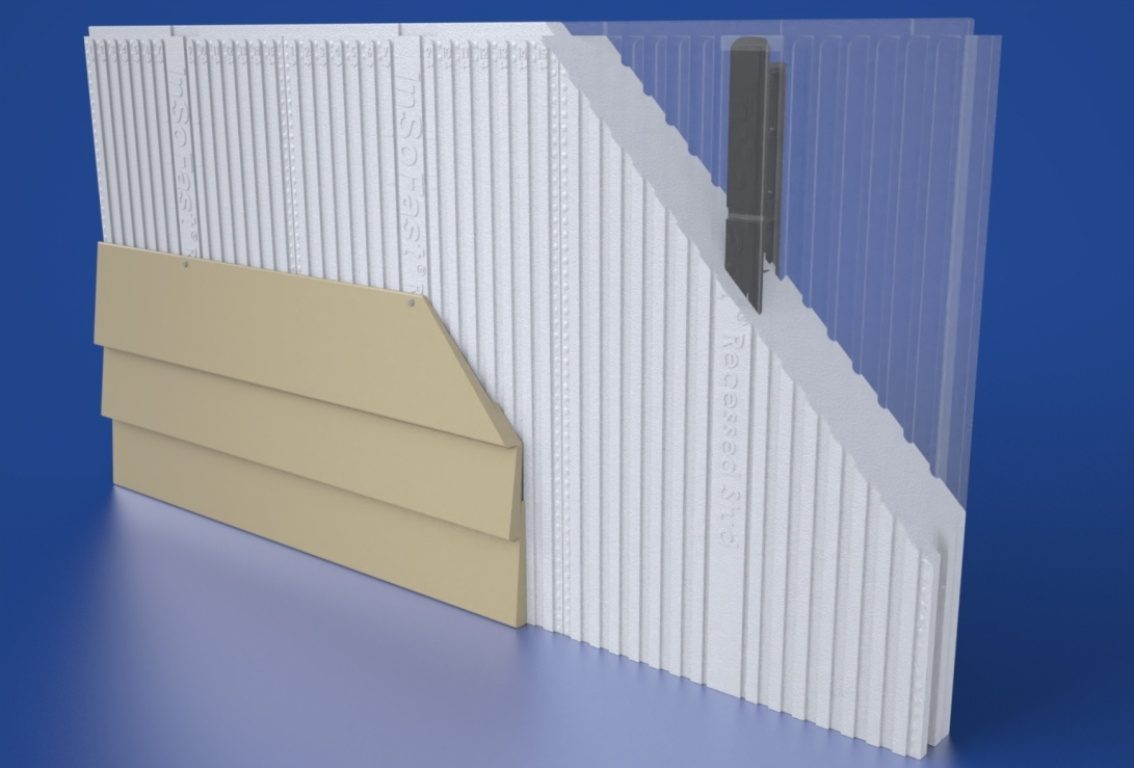

2.5 NRW Exterior
2 1/2 inch thick R-10.5 flat panel closed-cell insulation for exterior wall applications.
The FP-2.0RW (UX) is a feature rich insulation panel. The panel is optimized for exterior wall applications, one trip the the wall does what traditional methods need 5 trips. High pressure steam fusion co-molds the non ferrous studs every 16” on center providing positive attachment for siding and superior moisture and insulation control.
- R-10.5 Continuous Insulation
- Built-in Studs
- Tongue and Groove Interlocks
- Vapor/Moisture Control
- Service Raceways
- Engineered for exterior applications
| FP 2.5 NRW Flat Panel | dfx - dwg - pdf - FP 2.5NRW zip file |
| InSoFast Exterior Architectural Submittal | |
| Panel Body Dimensions | 24in × 48in × 2½in |
| Drainage Channel Dimensions | 24in × ¼in × ¼in |
|
Coverage |
8 sq-ft |
|
R-Value ASTM C518 |
R-10.5 |
| Comparable Performance to |
2×4 Wall/R-15 Batts |
| ASTM C578 Type II |
Closed-Cell, injection-molded EPS |
|
Canadian Standards CAN/ULC S701 Type 2 |
|
|
ASTM C303 Foam Density |
1.35 lbs per cubic foot |
|
ASTM E96 Water Vapor Permeability |
(Class III Vapor Retarder) 3.5perm/in |
| Maximum Service Temperature (long term) |
167°F = 75 Celsius (°C) |
|
Recessed ½in below Surface |
|
|
Interlocking Edges |
√ |
| Cutting Indication Lines |
√ |
|
Designed Ready for Finishing Attachment |
Both Interior/Exterior (stucco, siding, etc) |
|
Exterior Rated Moisture Control ORSC, Section R703.1.1 |
-approved rain screen and drainage technology on both sides |
|
Exterior Application |
√ |
|
Interiors Application |
√ |
