Door (Container) 2.5 Flat Panel-Bundle

Product Overview

EXe Panels for Doors

You need a minimum of 4-5 panels per door depending on the height of the container. Adjust your quantity to display the number of doors you need to cover, approximately 1 box per door.

Add On Door Option 1 box (Per Door)

$109.40

One box contains a total of 5 EXe 2.5 Panels, covering up to 40 sq-ft.

EXe Panels for Doors

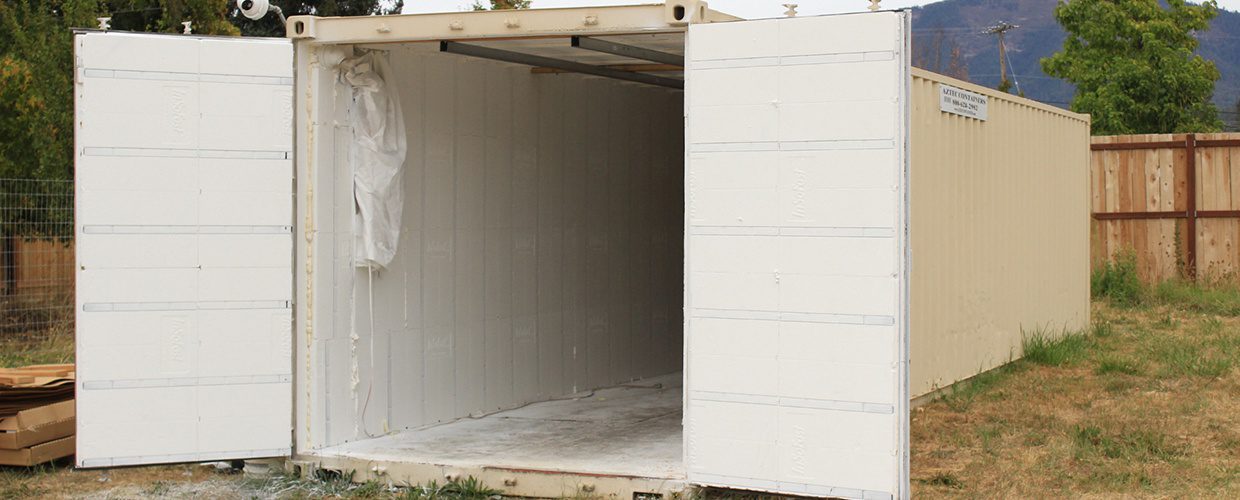

There are many styles of shipping container doors and just as many ways to insulate them. Doors vary from manufacturer to manufacturer, advanced tools and carpentry skills is required for this application. Like all of our panels they can be cut and modified to fit your size container. It takes 4 EXe 2.5 flat panels to insulate a standard shipping container door.  Approximately 1 box per door.

It is best to have a sample kit on site to fit and measure for your door.  The inserts supplied in the sample kit represent most of the common role formed angles the container manufacturers use.

 Instructions

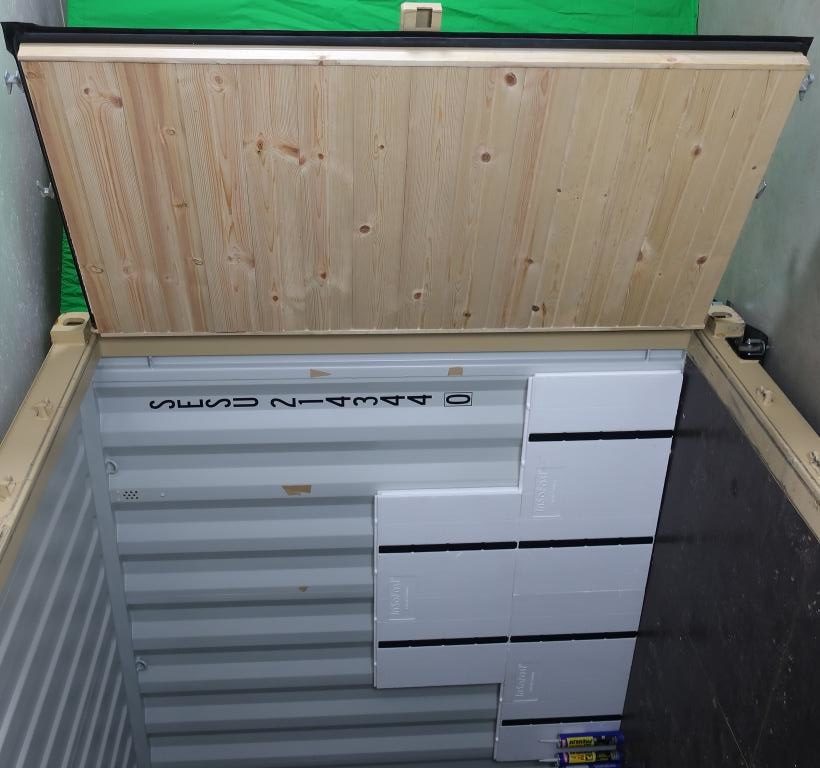

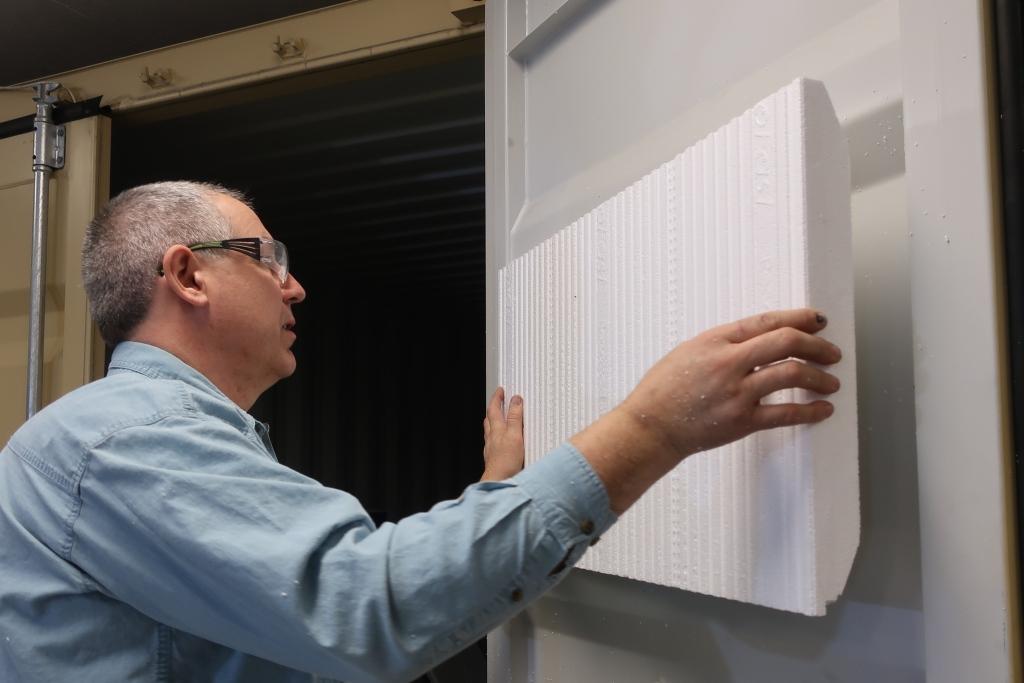

Insulating a shipping container door
Shipping Container Sample Kit
EXe 2.5 Door Panel Properties

EXe 2.5 Insulated Panel with Studs

EXe 2.5 Flat Panel Details
dfx dwg pdf EXe 2.5 zip file
InSoFast Exterior Architectural Submittal pdf
Panel Body Dimensions 24in × 48in × 2½in
Drainage Channel Dimensions 24in × ¼in × ¼in

Coverage

8 sq-ft

R-Value ASTM C518

R-10.5

Comparable Performance to

2×4 Wall/R-15 Batts

ASTM C578 Type II

Closed-Cell, injection-molded EPS

Canadian Standards  CAN/ULC S701 Type 2

ASTM C303 Foam Density

1.35 lbs per cubic foot

ASTM E96 Water Vapor Permeability

 (Class III Vapor Retarder) 3.5perm/in

Maximum Service Temperature (long term)

167°F = 75 Celsius (°C)

Co-Polymer Polypropylene Insulated Stud

Recessed ½in below Surface

Interlocking Edges

Cutting Indication Lines

Designed Ready for Finishing Attachment

Both Interior/Exterior (drywall, siding, etc)

Exterior Rated Moisture Control

ORSC, Section R703.1.1-approved rain screen and drainage technology on both sides

Exterior Application

Interiors Application



Features / Benefits
InSoFast engineered system of continuous insulation is perfectly suited for shipping container fabrication.
  • Simple to install
    • Why work so hard?
    • Adaptable Attachment
    • No Special Tools Needed
  • Built-in Studs*
    • Engineered Framing Studs
    • Non-conductive stud framing
    • No energy penalty for the studs
    • Non corrosive stud…non rusting
    • Adhesive Application no holes
  • Closed-cell high pressure fused EPS Insulation
  • Engineered for Shipping Containers
  • Lives up to its name: In So Fast

*The high-strength co-polymer plastic studs provide a positive attachment stud for finishing the container. The ribbed dovetails surface provides a cast-in-place adhesive applications against the metal surfaces.

Container Swing door video

Estimating Panels

Estimating and ordering is simple. You need a minimum of 4-5 panels per door depending on the height of the container. It takes 4 EXe 2.5 flat panels to insulate a standard shipping container door. Approximately 1 box per door. Adjust your quantity to display the number of doors you need to cover, approximately 1 box per door. A typical container door is 32+ square feet 1 box of panels is 40 square feet. Multiply length times width and divide the total square footage square footage (xx) by 40 sq-ft. this will determine the number of  boxes required for your project, (round up to the whole box count).  Don’t overestimate.

    • One (EXi 2.5 Insulated Panel = (8 sq.ft)
    • One box of  5 (Insulated Panels = (40 sq.ft)
Estimating Adhesive

LOCTITE® PL PREMIUM® POLYURETHANE CONSTRUCTION ADHESIVE

New Look Buy Shipping Container Insulation Panels in Monroe, NC

Green Guard Certified Adhesive:

In Canada the Glue is LePage PL Premium

Estimating Adhesive Quantity

Estimating the amount of adhesive YOU will use has variables beyond our control like condition of your walls and how accurate are you with a glue gun? The example below is for one side wall of a 20′ standard height shipping container you will need approximately 3 tubes of the adhesive. That is in a perfect world. PL Premium 3x adhesive is applied in a ⅜” bead on the backside of the studs onto the ribbed surfaces.  We realize that a 3/8″ bead of glue is very subjective. It is important that there is enough adhesive to squish the dovetails on the back side of the stud when pressed to the container wall. Adhesive follows the “Goldie Locks rule, too much, too little, and just right To verify that enough adhesive is used, press the panel into place. Pull the panel back and check to see if the adhesive has spread out beyond the full width of the stud. It is normal for the panel to “float out” from the side of the container when it is accommodating irregularities in the container walls. Additional adhesive may be necessary in some areas. If you are doing it just right you can expect that 1 large 28-fl oz tube will cover 18 of our 24″ long studs or enough glue at a 3/8″ bead to cover 36 foot long bead of glue.

Additionally you will have to estimate for glue around openings like windows and doors.

1 large 28-fl oz / 828 m tube = 18 (24″ studs or inserts)

  • CX-LP 46 (46 studs) = 46
  • 46 ÷ 18 = 2 1/2 tubes of the adhesive
  • SWi (30) = 1 tube of the adhesive
LOCTITE® PL PREMIUM® POLYURETHANE CONSTRUCTION ADHESIVE Rough estimate for  28 ounce tubes of adhesive required
Container Side Wall  End Wall Ceiling  Total Walls & Ceiling Floors Swing Doors Total Estimate
20′- Standard 2 1/2  6 1/2 13 7 3 23
20′- High Cube 2 1/2  6 1/2 14 7 3 24
40′- Standard 6 2 1/2  13 28 14 3 45
40′- High Cube 2 1/2  13 29 14 3 46

Important Notice: Container Surface Temperature Applications

When bonding EPS and XPS foam insulation, use above 40°F (4°C) and avoid cure and surface temperatures above 90°F (32°C). Surfaces must be clean, dry and free of frost, grease, dust and other contaminants. Pre-fit all materials and protect finished surfaces. If using cartridge format, cut nozzle at a 45° angle to desired bead size and puncture inner seal. Be very careful not to allow Loctite® PL® Premium to cure on a finished surface.

Cold Weather Tips:

Interior Installation of a Shipping Container

In cold conditions below 40°F (4°C), heating the interior space of the container will not be sufficient for the adhesive to cure. The insulation panels will not allow heat to transfer to the container’s bonding surface.  It is recommended to either move the container to a heated area or tent and heat the exterior until the adhesive cures.

Exterior Installation

The interior of the container can be heated until the adhesive has cured.

Interior and Exterior Installation

Install the exterior panels first while heating the interior.  Allow adhesive to cure before installing interior insulation.

Overview / FeaturesTechnical Data / Directions

Freight Details / Dimensions Weight
We offer free curb side deliveries on all of our orders.

You may upgrade your delivery service for an additional charge. LIFT GATE SERVICE IS AN ADDITIONAL CHARGE. Please read through our shipping and purchasing policies, for more details before placing your order.

Product Code

Number of Parts

Box Dimension

Cubic Feet Per Box

 Weight Per Box

Length

Width

Height

EXe 2.5

5 Panels 40 SqFt

13″

25″

49″

9.22

22 Lbs

Add R-Value with InSoFast PLUS

It’s easy to increase your R-Value beyond R-10 while maintaining the engineered benefits of the continuous InSoFast panels. Just start with a base of feature-rich InSoFast panels.
