Endwall (Container) LowPro-Kit

Product Overview

LowPro End Wall bundle (CX-LPEW) has material to finish the end wall of a high cube or standard shipping container for interior or exterior application. The LP-EW studs are placed 10 inches on center alternating with the end wall inserts.

  • This bundle contains: 1 Box
    • LowPro Endwall Studded inserts – 2′ (22 pcs).
    • End Wall Inserts – 4’ (9 pcs).

$260.04

1 box kit contains 22 LowPro End Wall Studs and 9 End Wall Inserts Bundle

LP-EW LowPro End Wall Bundle Description

LP-EW: LowPro End Wall bundle is part of a assembly that has material to finish the end wall of a 9′ high cube or 8′ standard shipping container. The LP-EW studs are placed 10 inches on center alternating with the end wall inserts. The LP-EW studs are ideally suited for container conversions for commercial, residential, industrial, interior or exterior applications where thin wall insulation and framing is the primary concern. Refer to the container diagram to determine the proper fit is very important.

*This LP-EW bundle is a 3 part assembly designed to work on the end wall of a container. Sheet infill insulation supplied by others.

End Wall Stud Properties

LP-EW LowPro Insulated Stud

One box of the LP-EW 22 Insulated studs will do 44 lineal feet of framing.

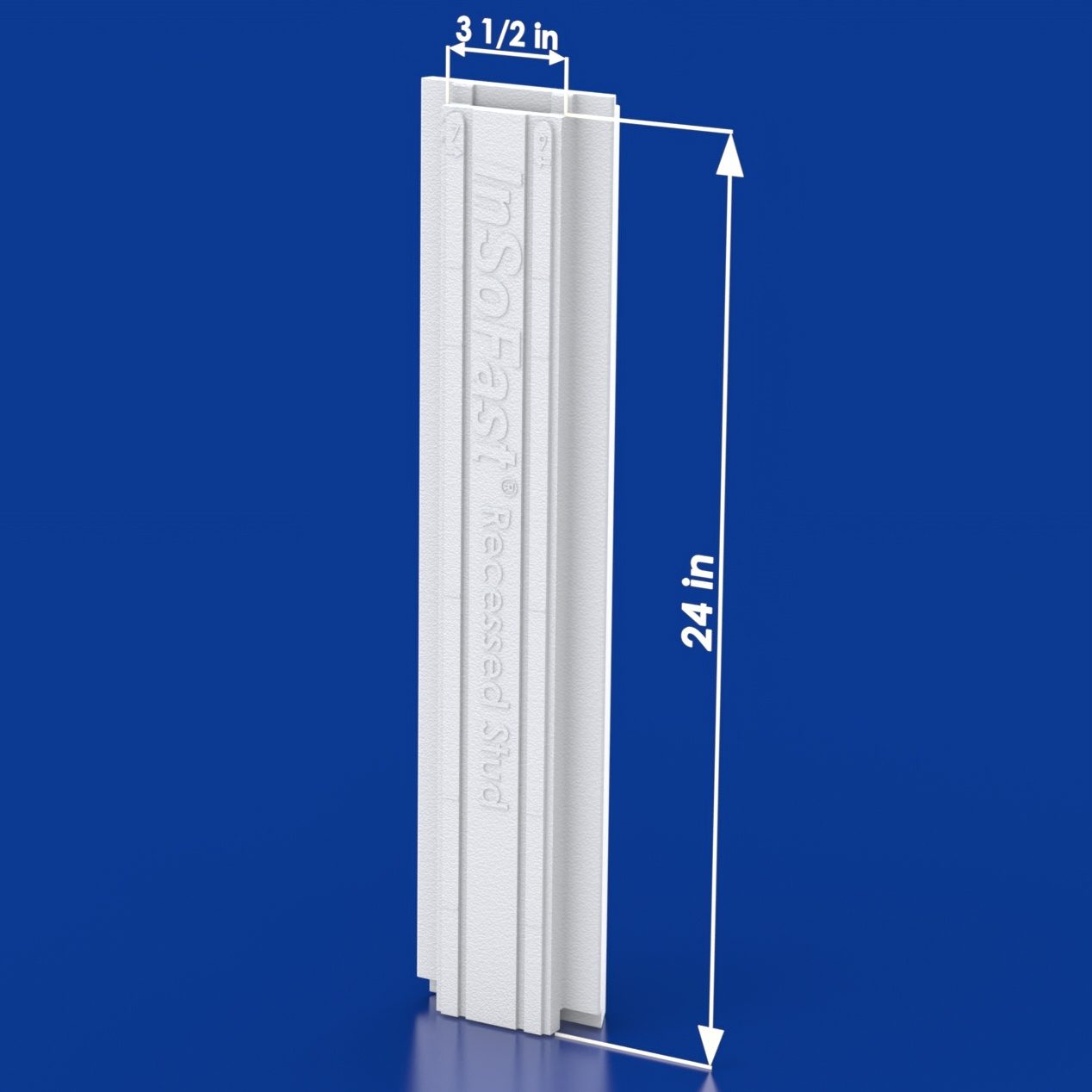

LowPro-Insulated Stud Endwall Architectural Dimensions

dwg dxf pdf   CX-EW

Dimensions

5 1/2in × 24in × 2 1/2 in

Coverage

1.00 sq-ft

R-Value ASTM C518

R-10.5

ASTM C578 Type II

Closed-Cell, injection-molded EPS

Canadian Standards  CAN/ULC S701 Type 2

ASTM C303 Foam Density

1.35 lbs per cubic foot

ASTM E96 Water Vapor Permeability

 (Class III Vapor Retarder) 3.5perm/in

Maximum Service Temperature (long term)

167°F = 75 Celsius (°C)

Co-Polymer Polypropylene Insulated Stud

Surface

Interlocking Edges

Engineered for Shipping Containers

Exterior Application

Interiors Application



End Wall Insert Properties

Endwall Inserts

End Wall Inserts or the container’s nose corrugation.  One box of Inserts covers the end wall.

Endwall Insert Architectural Dimensions
jpg zip file
Insert Dimensions See Diagram 5 1/4 in × 48in ×  1 5/8 in
Coverage per pcs 1.75 sq-ft
One Box -20 inserts 4′ long  (covers 35’ Sq-ft)
Interior side of the end wall  1 boxes
Exterior side of a the end wall 1 boxes
R-Value ASTM C518 R-4 per in
ASTM C578 Type II



Closed-Cell, injection-molded EPS

Canadian Standard CAN/ULC S701 Type 2
Foam Density 1 lbs per cubic foot
Interiors
Exteriors
Shipping Containers



Features / Benefits
InSoFast engineered system of continuous insulation is perfectly suited for shipping container fabrication.
  • Simple to install
    • Why work so hard?
    • Adaptable Attachment
    • No Special Tools Needed
  • Built-in Studs*
    • Engineered Framing Studs
    • Non-conductive stud framing
    • No energy penalty for the studs
    • Non corrosive stud…non rusting
    • Adhesive Application no holes
  • Closed-cell high pressure fused EPS Insulation
  • Engineered for Shipping Containers
  • Lives up to its name: In So Fast

*The high-strength co-polymer plastic studs on variable 11 – 22 inches on centers provide a positive attachment stud for finishing the container. The ribbed dovetails surface provides a cast-in-place adhesive applications against the metal surfaces.

LowPro ENDWALL BUNDLE VIDEO

Estimating End Walls

Estimating and ordering is simple measure and add together how many square feet of end wall framing that your container requires to complete the job. This is easy to determine the number of boxes needed, it is 1 box per side you wish to insulate. Don’t overestimate, cut studs, panels and inserts can be re-used.

    • (LP-EW) = 1 Low Pro End Wall Bundle – interior or exterior



Estimating Adhesive

LOCTITE® PL PREMIUM® POLYURETHANE CONSTRUCTION ADHESIVE

New Look Buy Shipping Container Insulation Panels in Monroe, NC

Green Guard Certified Adhesive:

In Canada the Glue is LePage PL Premium

Estimating Adhesive Quantity

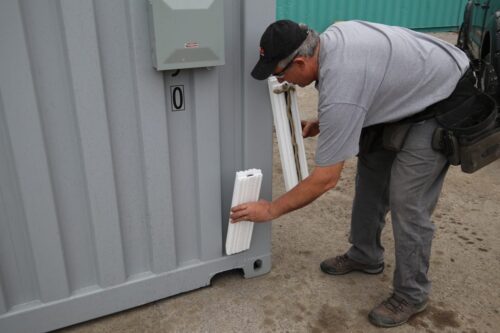

Estimating the amount of adhesive YOU will use has variables beyond our control like condition of your walls and how accurate are you with a glue gun? The example below is for one side wall of a 20′ standard height shipping container you will need approximately 3 tubes of the adhesive. That is in a perfect world. PL Premium 3x adhesive is applied in a ⅜” bead on the backside of the studs onto the ribbed surfaces.  We realize that a 3/8″ bead of glue is very subjective. It is important that there is enough adhesive to squish the dovetails on the back side of the stud when pressed to the container wall. Adhesive follows the “Goldie Locks rule, too much, too little, and just right To verify that enough adhesive is used, press the panel into place. Pull the panel back and check to see if the adhesive has spread out beyond the full width of the stud. It is normal for the panel to “float out” from the side of the container when it is accommodating irregularities in the container walls. Additional adhesive may be necessary in some areas. If you are doing it just right you can expect that 1 large 28-fl oz tube will cover 18 of our 24″ long studs or enough glue at a 3/8″ bead to cover 36 foot long bead of glue.

Additionally you will have to estimate for glue around openings like windows and doors.

1 large 28-fl oz / 828 mL tube = 18 (24″ studs or inserts)

  • CX-LP 46 (46 studs) = 46
  • 46 ÷ 18 = 2 1/2 tubes of the adhesive
  • CSW (30) = 1 tube of the adhesive
LOCTITE® PL PREMIUM® POLYURETHANE CONSTRUCTION ADHESIVE Rough estimate for  28 ounce tubes of adhesive required
Container Side Wall  End Wall Ceiling  Total Walls & Ceiling Floors Swing Doors Total Estimate
20′- Standard 2 1/2  6 1/2 13 7 3 23
20′- High Cube 2 1/2  6 1/2 14 7 3 24
40′- Standard 6 2 1/2  13 28 14 3 45
40′- High Cube 2 1/2  13 29 14 3 46

Important Notice: Container Surface Temperature Applications

When bonding EPS and XPS foam insulation, use above 40°F (4°C) and avoid cure and surface temperatures above 90°F (32°C). Surfaces must be clean, dry and free of frost, grease, dust and other contaminants. Pre-fit all materials and protect finished surfaces. If using cartridge format, cut nozzle at a 45° angle to desired bead size and puncture inner seal. Be very careful not to allow Loctite® PL® Premium to cure on a finished surface.

Cold Weather Tips:

Interior Installation of a Shipping Container

In cold conditions below 40°F (4°C), heating the interior space of the container will not be sufficient for the adhesive to cure. The insulation panels will not allow heat to transfer to the container’s bonding surface.  It is recommended to either move the container to a heated area or tent and heat the exterior until the adhesive cures.

Exterior Installation

The interior of the container can be heated until the adhesive has cured.

Interior and Exterior Installation

Install the exterior panels first while heating the interior.  Allow adhesive to cure before installing interior insulation.
