Container Panels

Container Package Examples

Engineered insulation panels just for containers. Simplify your ordering and save time with these shipping container packages!
Packages Approximate Price Range Only
20' Container - Standard $1,581.00 - $2,137.40
20' Container - High Cube $1,680.40 - $2,236.80
40' Container - Standard $2,908.20 - $3,822.80
40' Container - High Cube $3,107.00 - $4,021.00

Ordering by the Box:

If your container insulation needs don't fit into our package examples and you want to customize your order, no problem you can adapt your order to fit your needs. Review the example's quantity that closely matches your need and adjust your cart quantity accordingly. Or just call us we can help you determine the right amount for your project.

CX 44 Container Panel


The InSoFast CX 44 Container panel is designed to fit most shipping container's long side walls. It's ideal application is more formal residential/office finished habital space.  Refer to the container diagrams to determine if the InSoFast CX 44 will fit your container’s corrugations. The corrugations should be 11" on center the proper fit is very important. We recommend that you purchase a Container Sample Kit and physically measure the CX 44 panel's fit to the weld seams on your container. Make sure that you have a uniform 44" on center spacing for the container's welds.


Order CX44 Container Panel

$109.40

$109.40 Add to cart

1 box (at $109.40/per box), containing a total of 5 CX Container Panels, covering up to 36.67 sq-ft.

The CX 44 is specifically shaped insulation designed to fill the corrugation of a shipping container.


The CX 44 Panel 24" x 44"

  • Designed to fit 44" wide weld seam to weld seam.
  • CX44  Panel (5 panels/box) 36.67 s.f.
    • One 20’ high cube wall would require 5 boxes of the CX 44 panels
    • One 40’ high cube wall would require 10 boxes of the CX 44 panels

CX44 Series Panel

Feature
Properties
Panel Dimensions 24in × 44in × 2in-3 1/2in
Horizontal Chase 48in × 1in × ¾in
Vertical Chase 24in × ¾in × ¾in
Coverage 7.33sq-ft
R-Value R-11
Insulated Studs Surface
Interlocking Edges
Cutting Indication Lines
Code Depth Raceways
Ready for Finishing
Interiors
Exteriors
Applications
Side Walls weld seam @ 44" O.C.
Exterior
Interior
Commercial
Industrial
Educational
Shipping Containers
Tiny Houses
LEED/Green Build
NFPA Assembies
CX44 Feature Video
Ordering/Freight

Estimating and ordering is simple measure and add together how many lineal feet of framing that your container requires to complete the job. Divide the total lineal footage by 2' long studded inserts.  Don’t overestimate, cut studs and inserts can be re-used.

One (CX44 Insulated Panel = (7.33 sq.ft)

One box of  5 (CX44 Insulated Panel = (36.67 sq.ft)

We offer free curb side deliveries on all our orders, LIFT GATE SEVICE IS NOT INCLUDED. Please read through our shipping and purchasing policies before placing your order. You may upgrade your delivery for an additional charge.

Freight Dimensions Weight
Product Code

Number of Parts

Box Dimension

Cubic Feet Per Box

 Weight Per Box

Length

Width

Height

CX44

5 Panels 36.67 SqFt

14"

25"

50"

10.85

22 Lbs

Estimating Adhesive

Loctite PL Premium

LOCTITE® PL PREMIUM® POLYURETHANE CONSTRUCTION ADHESIVE

New Look Buy Shipping Container Insulation Panels in Monroe, NC

Green Guard Certified Adhesive:

In Canada the Glue is LePage PL Premium

Estimating Adhesive Quantity

Estimating the amount of adhesive YOU will use has variables beyond our control like condition of your walls and how accurate are you with a glue gun? The example below is for one side wall of a 20' standard height shipping container you will need approximately 3 tubes of the adhesive. That is in a perfect world. PL Premium 3x adhesive is applied in a ⅜" bead on the backside of the studs onto the ribbed surfaces.  We realize that a 3/8" bead of glue is very subjective. It is important that there is enough adhesive to squish the dovetails on the back side of the stud when pressed to the container wall. Adhesive follows the "Goldie Locks rule, too much, too little, and just right To verify that enough adhesive is used, press the panel into place. Pull the panel back and check to see if the adhesive has spread out beyond the full width of the stud. It is normal for the panel to "float out" from the side of the container when it is accommodating irregularities in the container walls. Additional adhesive may be necessary in some areas. If you are doing it just right you can expect that 1 large 28-fl oz tube will cover 18 of our 24" long studs or enough glue at a 3/8" bead to cover 36 foot long bead of glue.

Additionally you will have to estimate for glue around openings like windows and doors.

1 large 28-fl oz / 828 mL tube = 18 (24" studs or inserts)

  • CX 44 (22 panels with 2 studs each plus 8 end wall edges) = 52
  • 52 ÷ 18 = 3 tubes of the adhesive
LOCTITE® PL PREMIUM® POLYURETHANE CONSTRUCTION ADHESIVE Rough estimate for  28 ounce tubes of adhesive required
Container Side Walls End Wall Ceiling  Total w/o doors and floors Floors Swing Doors Total Estimate
20' Container - Standard 3 Per side total 6 2 1/2  6 1/2 13 7 3 23
20' Container - High Cube 3 Per side total 7 2 1/2  6 1/2 14 7 3 24
40' Container - Standard 6 Per side total  12 2 1/2  13 28 14 3 45
40' Container - High Cube 6 Per side total  13 2 1/2  13 29 14 3 46

Important Notice: Container Surface Temperature Applications

When bonding EPS and XPS foam insulation, use above 40°F (4°C) and avoid cure and surface temperatures above 90°F (32°C). Surfaces must be clean, dry and free of frost, grease, dust and other contaminants. Pre-fit all materials and protect finished surfaces. If using cartridge format, cut nozzle at a 45° angle to desired bead size and puncture inner seal. Be very careful not to allow Loctite® PL® Premium to cure on a finished surface.

Cold Weather Tips:

Interior Installation

Heating the interior of the container will not be sufficient for the adhesive to cure because the insulation panels will not allow heat to transfer to the container surface.  It is recommended to either move the container to a heated area or tent and heat the exterior until the adhesive has cured.

Exterior Installation

The interior of the container can be heated until the adhesive has cured.

Interior and Exterior Installation

Install the exterior panels first while heating the interior.  Allow adhesive to cure before installing interior insulation.

Overview / FeaturesTechnical Data / Directions


Swing Doors

If your project needs to insulate the swing doors on your container, we have a method for that application . Or just call us we can help you determine the right product for your application.

Engineered Features Exe 2.5

EXe Dimensions 24in × 48in × 2½in
Horizontal Chase 48in × 1in × ¾in
Vertical Chase 24in × ¾in × ¾in
Linear Coverage 8sq-ft
R-Value R-10.5
Insulated Studs Embedded ½in
Interlocking Edges
Cutting Lines
Code Depth Raceways
Ready for Finishing
Interiors
Exteriors
Shipping Containers
Swing Doors
Walls
Floors
Ceilings
Commercial
Industrial
Educational
Tiny Houses
Interiors
Exterior
EXe Panels for Doors

You need a minimum of 4-5 panels per door depending on the height of the container. Adjust your quantity to display the number of doors you need to cover, approximately 1 box per door.


Add On Door Option (Per Door)
EXe 2.5 Panels 1 Boxes
$109.40

$109.40 Add to cart

1 box (at $109.40/per box), containing a total of 5 EXe 2.5 Panels, covering up to 40 sq-ft.

Guides
Basic Container Installation pdf
Insulating a shipping container door pdf

Ordering Flat Panels

If your project needs don't fit into our speciality shaped panel profiles you may want to use our flat panels of different thichnesses. Or just call us we can help you determine the right panel for your project.

Engineered Features UX 2.0

Panel Dimensions 24in × 48in × 2in
Horizontal Chase 48in × 1in × ¾in
Vertical Chase 24in × ¾in × ¾in
Linear Coverage 8sq-ft
R-Value R-8.5
Insulated Studs Surface
Interlocking Edges
Cutting Indication Lines
Code Depth Raceways
Ready for Finishing
Interiors
Exteriors
Walls
Floors
Ceilings
Commercial
Industrial
Educational
Foundations Walls
Shipping Containers
Tiny Houses
Passive House
LEED/Green Build
Interiors
Exterior
NFPA Assembies

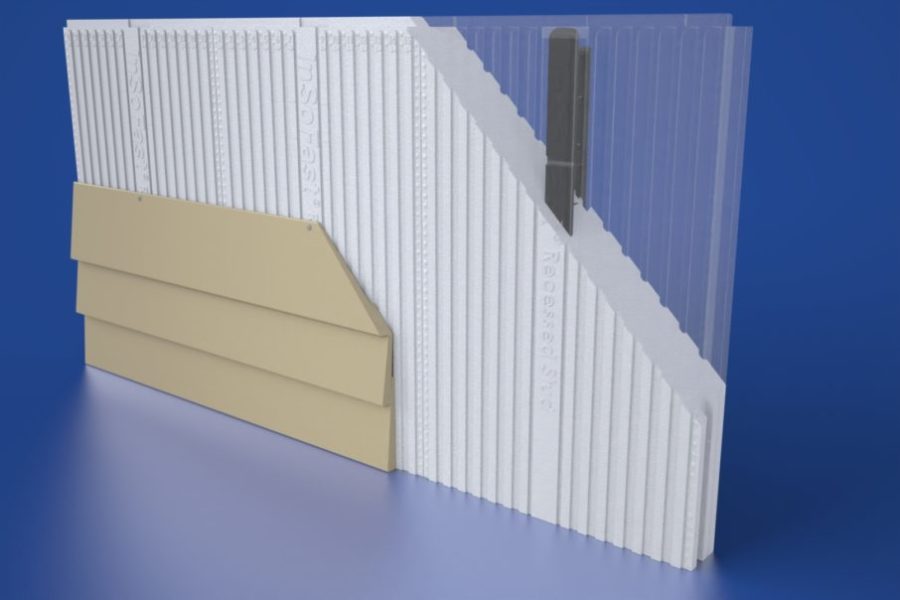

Engineered Features Exi 2.5

EXi Dimensions 24in × 48in × 2½in
Horizontal Chase 48in × 1in × ¾in
Vertical Chase 24in × ¾in × ¾in
Linear Coverage 8sq-ft
R-Value R-10.5
Insulated Studs Embedded ½in
Interlocking Edges
Cutting Lines
Code Depth Raceways
Ready for Finishing
Interiors
Exteriors
Walls
Floors
Ceilings
Commercial
Industrial
Educational
Foundations Walls
Shipping Containers
Tiny Houses
Passive House
LEED/Green Build
Interiors
Exterior
NFPA Assembies

Ordering Details

Please read through our shipping and purchasing policies before placing your order. For shipping container project orders, you will need to know the total square footage of the surfaces you wish to insulate and the dimensions and shape of the inserts.  MORE INFORMATION

We offer free curb side deliveries on all our orders, LIFT GATE SEVICE IS NOT INCLUDED. You may upgrade a project order to FedEx Home Delivery for an additional charge. We offer volume-discounted pricing on full project orders. Don’t overestimate, cut panels and inserts can be re-used.

InSoFast Plus Method

Need a higher R-value? It’s easy to increase your R-Value beyond R-10 while maintaining the engineered benefits of the continuous InSoFast panels. Just start with a base of feature-rich InSoFast panels.
