CX44 Container Panel

Product Overview

The CX 44 is specifically shaped insulation designed to fill the corrugation of a shipping container.

$135.00

Product Video

Physical Properties
Insulated Panel Systems CX 44

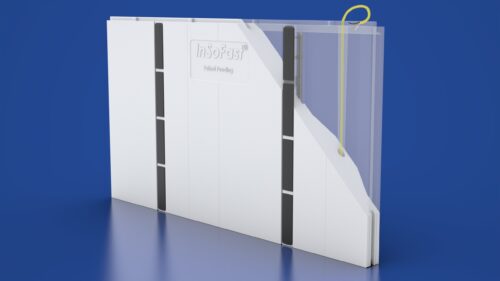

CX44 Insulated Shipping Container Panel with Studs

CX44 Panel Details – dwg   dxf  –  pdf

CX44 Zip File

Submittal

pdf

Dimensions

24in × 44in × 2in-3 1/2in

Horizontal Chase

 48in × 1in × ¾in

Vertical Chase

 24in × ¾in × ¾in

Coverage

7.33 sq-ft

R-Value ASTM C518

R-11

ASTM C578 Type II

Closed-Cell, injection-molded EPS

CAN/ULC S701 Type 2

ASTM C303 Foam Density

1.35 lbs per cubic foot

ASTM E96 Water Vapor Permeability

 (Class III Vapor Retarder) 3.5perm/in

Maximum Service Temperature (long term)

167°F = 75 Celsius (°C)

Co-Polymer Stud

Surface

Interlocking Edges

Service Raceways

Engineered for Shipping Containers

Exterior Application

Interiors Application

Features / Benefits
InSoFast engineered system of continuous insulation is perfectly suited for shipping container fabrication.
  • Simple to install
    • Why work so hard?
    • Adaptable Attachment
    • No Special Tools Needed
  • Built-in Studs*
    • Engineered Framing Studs
    • Non-conductive stud framing
    • No energy penalty for the studs
    • Non corrosive stud…non rusting
    • Adhesive Application no holes
  • Closed-cell high pressure fused EPS Insulation
  • Engineered for Shipping Containers
  • Lives up to its name: In So Fast

*The high-strength co-polymer plastic studs on 22-inches centers provide a positive attachment stud for finishing the container. The ribbed dovetails surface provides a cast-in-place adhesive applications against the metal surfaces.

Estimating Panels

Estimating and ordering is simple measure and add together how many square feet of side wall framing that your container requires to complete the job. Divide the total wall (xx) footage by 36.67 sq-ft. this will determine the number of boxes needed. Round up to the next whole number. Don’t overestimate, cut studs, panels and inserts can be re-used.

    • One (CX44 Insulated Panel = (7.33 sq-ft.)
    • One box of 5 (CX44 Insulated Panel = (36.67 sq-ft.)

Chart for a completely insulating the interior of a shipping container, all surfaces.

Complete Container Insulation Panels; 20′ Standard 20′ High Cube 40′ Standard 40′ High Cube
  Sidewall Sidewall Sidewall Sidewall
CX44 Interior Sidewall (2) Sidewalls (20′ ) CX44-Bundle (20′ HC) CX44-Bundle (40′) CX44-Bundle (40′ HC) CX44-Bundle
Box Total: 9 10 18 20

Flat Panel/Insert Endwall Endwall Endwall Endwall Endwall
2.0 Flat Panel (UX) 2 2 2 2
Inserts: Endwall 1 1 1 1
Box Total: 3 3 3 3

Ceiling 2.0 Flat Panel-Bundle Ceiling Ceiling Ceiling Ceiling
2.0 Flat Panel (UX) 4 4 8 8
Inserts: Ceilings 1 1 2 2
Box Total: 5 5 10 10

Door 2.5 Flat Panel-Bundle (2) Doors Door Door Door Door
2.5 Flat Panel (EXe) 2 2 2 2
Floor 2.0 Flat Panel-Bundle Floor Floor Floor Floor
2.0 Flat Panel (UX) 4 4 8 9




Total Box Count 23 24 41 44
Estimating Adhesive

In Canada the Glue is LePage PL Premium

Estimating Adhesive Quantity

Estimating the amount of adhesive YOU will use has variables beyond our control like condition of your walls and how accurate are you with a glue gun?

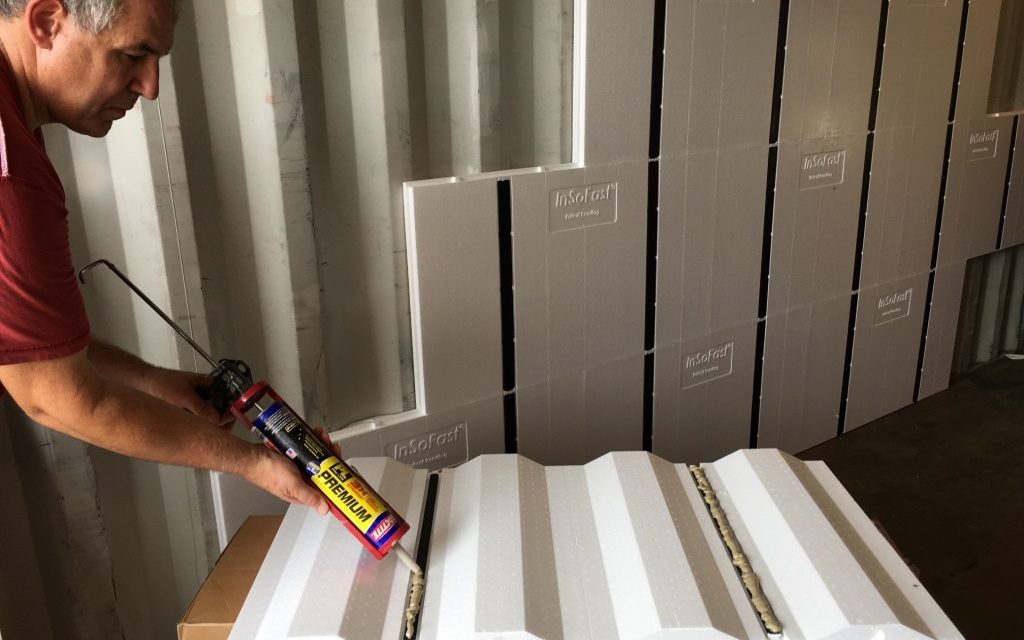

1 large 28-fl oz. / 828 mL tube = 18 (24″ studs or inserts)

  • CX-LP 46 (46 studs) = 46
  • 46 ÷ 18 = 2 1/2 tubes of the adhesive
  • I-SWI (30) = 1 tube of the adhesive

POLYURETHANE CONSTRUCTION ADHESIVE

Rough estimate for  28 ounce tubes of adhesive required

Container Side Wall  End Wall Ceiling  Total Walls & Ceiling Floors Swing Doors Total Estimate
20′- Standard 2 1/2  6 1/2 13 1 1/2 3 18
20′- High Cube 2 1/2  6 1/2 14 1 1/2 3 19
40′- Standard 6 2 1/2  13 28 3 3 34
40′- High Cube 2 1/2  13 29 3 3 34

Important Notice: Container Surface Temperature Applications

When bonding EPS and XPS foam insulation, use above 40°F (4°C) and avoid cure and surface temperatures above 90°F (32°C). Surfaces must be clean, dry and free of frost, grease, dust and other contaminants. Pre-fit all materials and protect finished surfaces. If using cartridge format, cut nozzle at a 45° angle to desired bead size and puncture inner seal. Be very careful not to allow Loctite® PL® Premium to cure on a finished surface.

Technical Data

Shipping, Purchasing & Returns

Please read all the current Shipping, Purchasing & Returns *

Freight Details / Dimensions Weight
Product Code

Number of Parts

Box Dimension

Cubic Feet Per Box

 Weight Per Box

Length

Width

Height

CX44

5 Panels 36.67 SqFt

14″

25″

50″

10.85

22 Lbs



Add R-Value with InSoFast PLUS

It’s easy to increase your R-Value beyond R-10 while maintaining the engineered benefits of the continuous InSoFast panels. Just start with a base of feature-rich InSoFast panels.
