CX-LP 15 LowPro Insulated Stud

Product Overview

LowPro Insulated corrugation infill framing is part of an assembly to finish shipping container walls using the CX LowPro infill framing.

  • This box contains:
    • CX-LPSW-15 Insulated framing = 15 pcs.)
    • (7 1/2) 8′ long sections- 30 ln-ft. of framing
  • SKU: CX-LPSW-15


Box contains 15 LowPro Studs = 30 ln-ft. of infill framing (3-3.4) 8' Sections)

LowPro Video

Features / Benefits

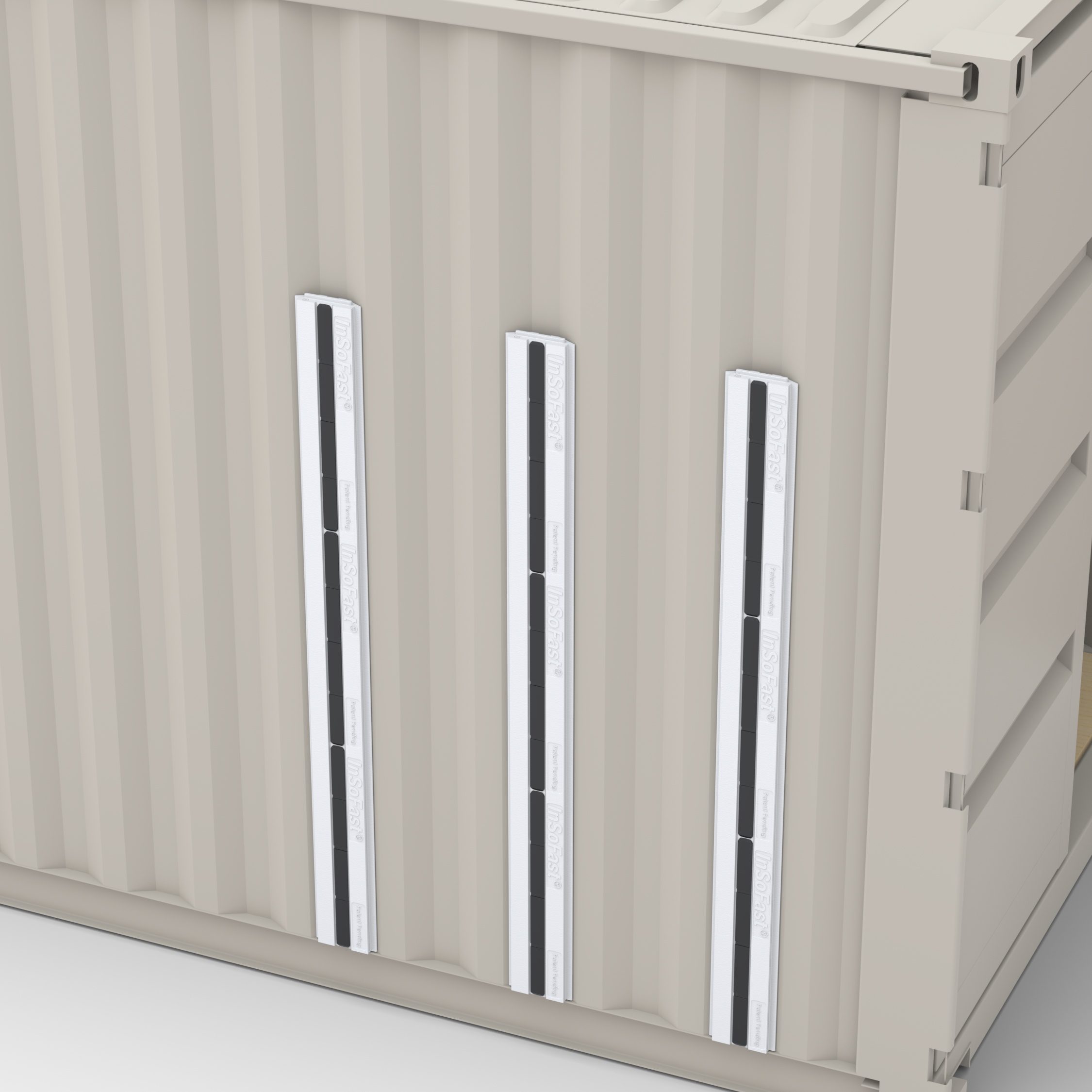

This CX LowPro is an assembly of insulated infill framing for shipping container side walls. The infill framing is typically placed on either 11 – 22 inches on center in an alternating pattern with the side wall inserts. The CX-LP infill framing is ideally suited for container conversions in commercial, residential, industrial, interior or exterior applications where thin wall insulation and framing is the primary concern.

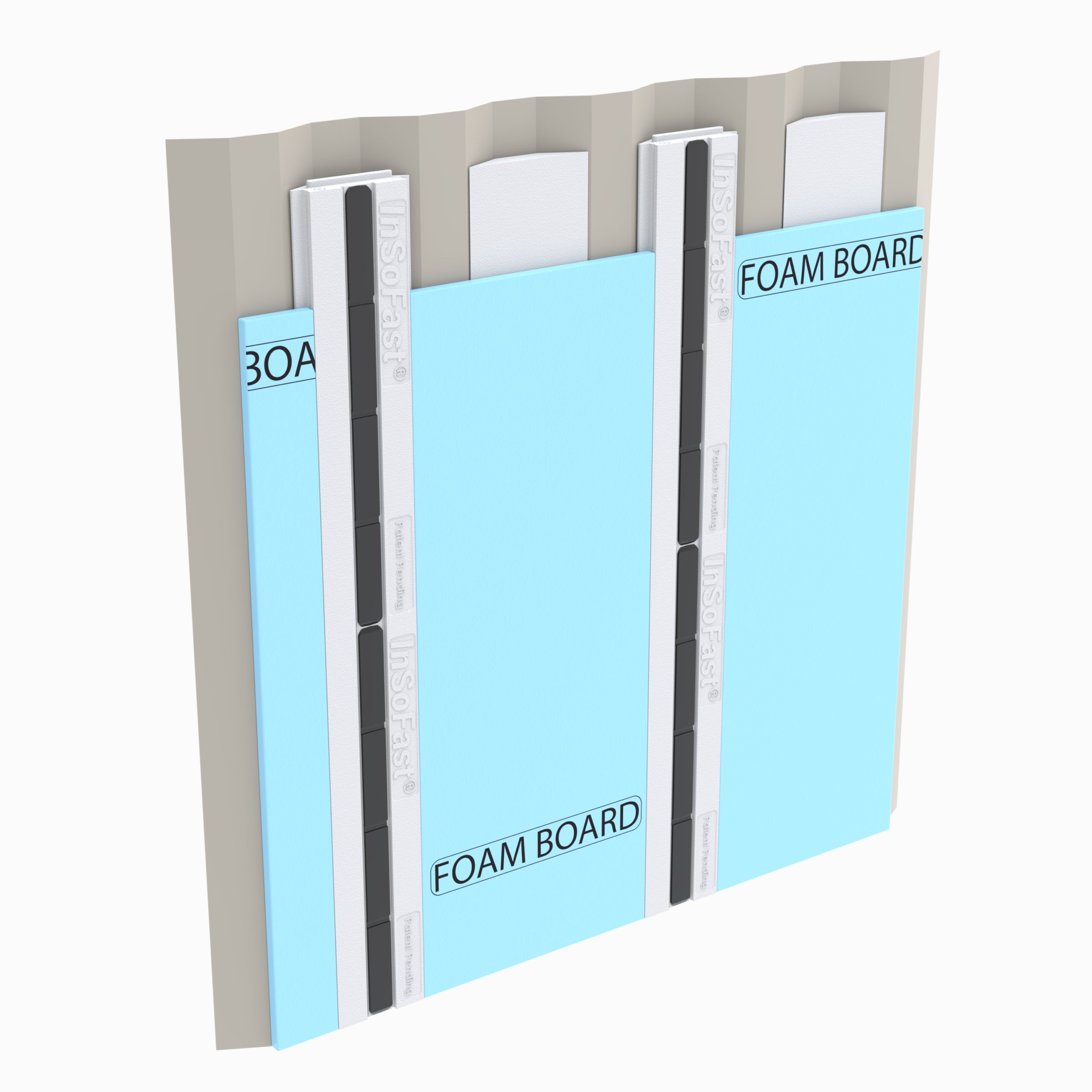

*This CX LowPro bundle is a 3 part assembly designed to work on the long side walls of a container. Sheet infill insulation supplied by others. See (Estimating Chart) below.

  • Preferred method when modifying older containers with dings and dents.
  • When weld seams are greater than or less than 44″ on center.
  • When the over sea freight issue is a concern
  • When interior or exterior space is critical
  • Industrial fast track application.
  • (3) part fast track application.

InSoFast engineered system of continuous insulation is perfectly suited for shipping container fabrication.

  • Simple to install
  • Built-in Studs*
  • Closed-cell high pressure fused EPS Insulation
  • Engineered for Shipping Containers
  • Lives up to its name: In So Fast

*The high-strength co-polymer plastic studs on 22-inches centers provide a positive attachment stud for finishing the container. The ribbed dovetails surface provides a cast-in-place adhesive applications against the metal surfaces.

Properties LowPro Stud

CX-LP LowPro Insulated Stud

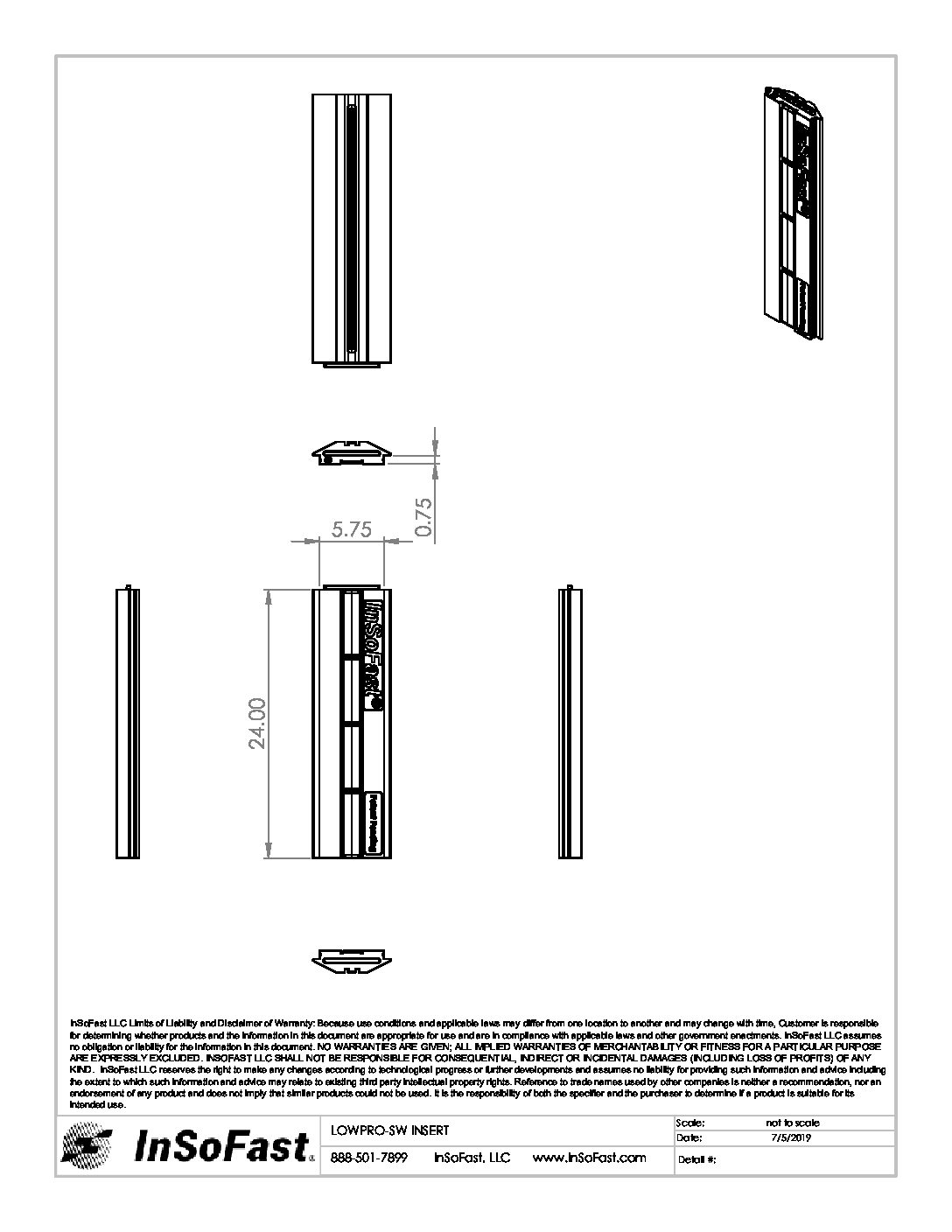

LowPro-Insulated Stud Sidewall Architectural Dimensions
dwg dxf pdf   CX-LP


7 1/2in × 24in × 2in


1.25 sq-ft

R-Value ASTM C518


ASTM C578 Type II

Closed-Cell, injection-molded EPS

Canadian Standards  CAN/ULC S701 Type 2

Foam Density

1.35 lbs. per cubic foot

Co-Polymer Insulated Stud


Interlocking Edges



Estimating Insulated Studs

Estimating and ordering is simple measure and add together how many lineal feet of the corrugation infill framing that your container requires to complete the job. Divide the total lineal footage of  infill framing by the 2′ long inserts to find out how many CX-LP you require.  Don’t overestimate, cut studs, panels, and inserts can be re-used.

Infill framing is typically set at 22 inches on center. If you fill all the corrugations the stud amount will double.

Complete Interior Insulation for a Container; 20′ Standard 20′ High Cube 40′ Standard 40′ High Cube
LowPro Insulated Studs/Inserts Sidewall Sidewall Sidewall Sidewall Sidewall
CX-LP 46 LowPro Insulated Stud 2 2 4 4
CX-LP 15 LowPro Insulated Stud 1 1 0 1
Sidewall Inserts: 2 2 4 4
Box Total: 5 5 8 9
Endwall (Container) LowPro-Bundle Endwall Endwall Endwall Endwall
Endwall LowPro-Kit 1 1 1 1
Foam Board Insulation by others: 3/4″ x 4′ x 8′ 3/4″ x 4′ x 8′ 3/4″ x 4′ x 8′ 3/4″ x 4′ x 8′
Sidewall 14.67 16.25 29.67 31.75
4×8 Foam Board Total  15 17 30 32


Estimating Adhesive

In Canada the Glue is LePage PL Premium

Estimating Adhesive Quantity

Estimating the amount of adhesive YOU will use has variables beyond our control like condition of your walls and how accurate are you with a glue gun?

1 large 28-fl oz. / 828 mL tube = 18 (24″ studs or inserts)

  • CX-LP 46 (46 studs) = 46
  • 46 ÷ 18 = 2 1/2 tubes of the adhesive
  • I-SWI (30) = 1 tube of the adhesive


Rough estimate for  28 ounce tubes of adhesive required

Container Side Wall  End Wall Ceiling  Total Walls & Ceiling Floors Swing Doors Total Estimate
20′- Standard 2 1/2  6 1/2 13 1 1/2 3 18
20′- High Cube 2 1/2  6 1/2 14 1 1/2 3 19
40′- Standard 6 2 1/2  13 28 3 3 34
40′- High Cube 2 1/2  13 29 3 3 34

Important Notice: Container Surface Temperature Applications

When bonding EPS and XPS foam insulation, use above 40°F (4°C) and avoid cure and surface temperatures above 90°F (32°C). Surfaces must be clean, dry and free of frost, grease, dust and other contaminants. Pre-fit all materials and protect finished surfaces. If using cartridge format, cut nozzle at a 45° angle to desired bead size and puncture inner seal. Be very careful not to allow Loctite® PL® Premium to cure on a finished surface.

Technical Data

Shipping, Purchasing & Returns

Please read all the current Shipping, Purchasing & Returns *

Freight Dimensions Weight
Product Code

Number of Parts

Per Box Dimension

Cubic Feet Per Box

 Weight Per Box





15 pcs = 30 lnft





9 Lbs

Add R-Value with InSoFast PLUS

It’s easy to increase your R-Value beyond R-10 while maintaining the engineered benefits of the continuous InSoFast panels. Just start with a base of feature-rich InSoFast panels.
