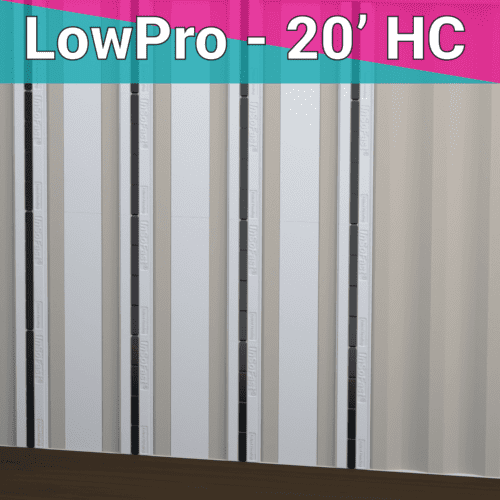

Sidewall (20′ High Cube) LowPro-Bundle

This CX LowPro bundle is part of an assembly to finish one side of a 20′ High Cube container’s long side wall. The corrugation infills are typically placed on either 11-22 inches on center in an alternating pattern with the (I-SWI) side wall inserts.

*This CX LowPro bundle is a 3 part assembly designed to work on the long side walls of a container. Sheet infill insulation supplied by others. See (Estimating Chart) below.

1. Preferred method when modifying older containers with dings and dents.
2. When weld seams are greater than or less than 44″ on center.
3. When the over sea freight issue is a concern
4. When interior or exterior space is critical
5. Industrial fast track application.
6. (3) part fast track application.

The CX-LP insulated infill framing is ideally suited for container conversions in commercial, residential, industrial, interior or exterior applications where thin wall insulation and framing is the primary concern.

• InSoFast engineered system of continuous insulation is perfectly suited for shipping container fabrication.
  • Simple to install
    • Why work so hard?
    • Adaptable Attachment
    • No Special Tools Needed
  • Built-in Studs*
    • Engineered Framing
    • Non-conductive framing
    • No energy penalty for the studs
    • Non corrosive frame…non rusting
    • Adhesive Application no holes
  • Closed-cell high pressure fused EPS Insulation
    • Continuous Insulation
    • Tongue and Groove Interlocks
  • Engineered for Shipping Containers
  • Lives up to its name: In So Fast

  *The high-strength co-polymer plastic studs on 22-inches centers provide a positive attachment stud for finishing the container. The ribbed dovetails surface provides a cast-in-place adhesive applications against the metal surfaces.

Estimating, measure and add together how many 20′ standard sidewall surfaces your container project requires.  Don’t overestimate, cut studs and inserts can be re-used. Studs are typically set at 22 inches on center. One side of a standard 20′ container would need 46 (CX-LP) studs and 20 -21 pcs. of the(I-SWI)side wall inserts depending on your specific layout.

Math Formula: Total Length times inches, divide by 22″ on center, equals total number of the 8′ or 8’6″ high studs you need.

• 20′ x 12″= 240 lineal inches
• 240″ ÷ 22″ = 11 studs bays to fill

• • High Cube 20′
    • CX-LPSW Studded Insert per stud bay(4pcs.) = (1) 8′ Stud
    • 11 x 4 LowPro Studs needed per bay = 44 LP studs needed per side.

In Canada the Glue is LePage PL Premium

Estimating Adhesive Quantity

Estimating the amount of adhesive YOU will use has variables beyond our control like condition of your walls and how accurate are you with a glue gun?

1 large 28-fl oz. / 828 mL tube = 18 (24″ studs or inserts)

• CX-LP 46 (46 studs) = 46
• 46 ÷ 18 = 2 1/2 tubes of the adhesive
• I-SWI (30) = 1 tube of the adhesive

Important Notice: Container Surface Temperature Applications

When bonding EPS and XPS foam insulation, use above 40°F (4°C) and avoid cure and surface temperatures above 90°F (32°C). Surfaces must be clean, dry and free of frost, grease, dust and other contaminants. Pre-fit all materials and protect finished surfaces. If using cartridge format, cut nozzle at a 45° angle to desired bead size and puncture inner seal. Be very careful not to allow Loctite® PL® Premium to cure on a finished surface.

Technical Data
