Sidewall (40′ Standard) LowPro-Bundle

Product Overview

LowPro bundle assembly with enough material to finish one side of a 40 standard container wall using the CX-LowPro studs and the (I-SWI) side wall inserts. 40′ Standard Sidewall – 1(CX LowPro/Insert – every other corrugation)

  • This bundle contains:
    • 2(CX-LPSW – Insulated stud Boxes= 92 pcs.) – (184 Lineal Feet)
    • 2(I-SWI -Side Wall Inserts Box = 30 ) – (240 Lineal Feet)
  • SKU: CONSWLP-40ST

From: $770.00

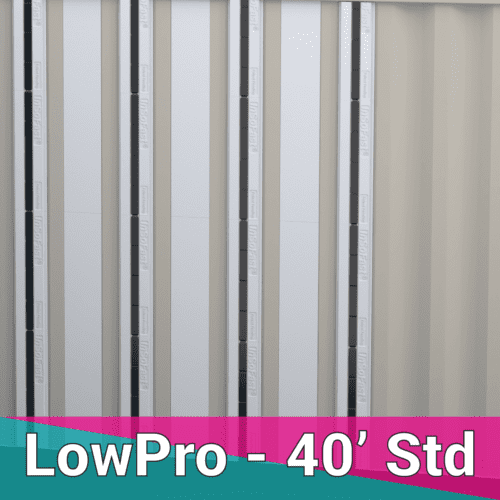

LowPro Studs and Inserts, Side Wall Bundle for a Standard 8' high x 40' long Shipping Container

Bundle description

This CX LowPro bundle is part of an assembly to finish one side of a 40′ Standard 8′ high container’s side wall. The corrugation infills are typically placed on either 11 – 22 inches on center in an alternating pattern with the (I-SWI) side wall inserts. The CX-LP insulated infill framing is ideally suited for container conversions in commercial, residential, industrial, interior or exterior applications where thin wall insulation and framing is the primary concern.

  1. Preferred method when modifying older containers with dings and dents.
  2. When weld seams are greater than or less than 44″ on center.
  3. When the over sea freight issue is a concern
  4. When interior or exterior space is critical
  5. Industrial fast track application.
  6. (3) part fast track application.

40′ Side Wall Bundle Contains:

This bundle contains:

  •  SKU: CON-SWLP-40ST
    • 2(CX-LPSW – Insulated stud Boxes= 92 pcs.) – (184 Lineal Feet)
      •  (4 LPSW = (1) 8′ Stud)
    •  2(I-SWI -Side Wall Inserts Box = 30 ) – (240 Lineal Feet)
      • (2 Side Wall Inserts = (1) 8′ Stud)

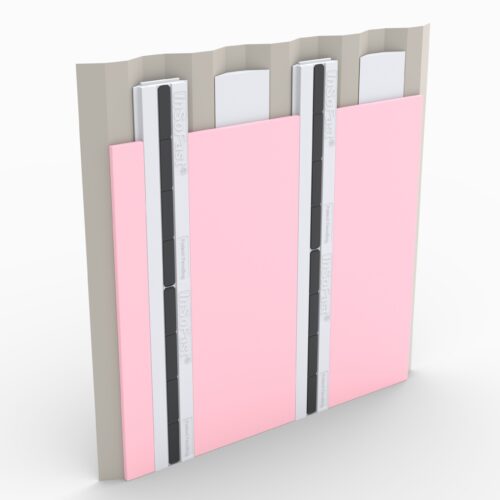

*This CX LowPro bundle is a 3 part assembly designed to work on the long side walls of a container. Sheet infill insulation supplied by others.

  • To cover in between the the LowPro insulated studs (7)- 4’x8′ 3/4″ thick sheet foam is required.



Physical Properties (CX44) LowPro Stud

CX-LP LowPro Insulated Stud

LowPro-Insulated Stud Sidewall Architectural Dimensions
dwg dxf pdf   CX-LP

Dimensions

7 1/2in × 24in × 2in

Coverage

1.25 sq-ft

R-Value ASTM C518

R-8.5

ASTM C578 Type II

Closed-Cell, injection-molded EPS

Canadian Standards  CAN/ULC S701 Type 2

Foam Density

1.35 lbs per cubic foot

Co-Polymer Polypropylene Insulated Stud

Surface

Interlocking Edges

Interiors

Exterior

Physical Properties (SWI) Side Wall Inserts
Buy Shipping Container Insulation Panels in Bakersfield, CA

Side Wall Inserts

One box of Side Wall Inserts covers 112 Lineal feet of corrugation.

Sidewall Architectural Dimensions

jpg zip file

See Dimensions

48in x 7 3/4in x 1 1/4 in

Coverage

2.5 sq-ft

R-Value ASTM C518

R-5

Closed-Cell, injection-molded EPS

ASTM C578 Type II

Canadian Standards

CAN/ULC S701 Type 2

Foam Density

1 lbs per cubic foot

Features Benefits
  • InSoFast engineered system of continuous insulation is perfectly suited for shipping container fabrication.
    • Simple to install
      • Why work so hard?
      • Adaptable Attachment
      • No Special Tools Needed
    • Built-in Studs*
      • Engineered Framing
      • Non-conductive framing
      • No energy penalty for the studs
      • Non corrosive frame…non rusting
      • Adhesive Application no holes
    • Closed-cell high pressure fused EPS Insulation
    • Engineered for Shipping Containers
    • Lives up to its name: In So Fast

    *The high-strength co-polymer plastic studs on 22-inches centers provide a positive attachment stud for finishing the container. The ribbed dovetails surface provides a cast-in-place adhesive applications against the metal surfaces.

LowPro Bundle Video

Estimating LowPro Side Walls

Estimating, measure and add together how many 40′ High Cube sidewall surfaces your container project requires.  Don’t overestimate, cut studs and inserts can be re-used.

Studs are typically set at 22 inches on center. One side of a standard 40′ container would need 87.2 (CX-LP) studs and 40 – 44 pcs. of the(I-SWI)side wall inserts depending on your specific layout.

Quick Math Formula: Total Length times inches, divide by 22″ on center, equals total number of the 8′ or 8’6″ high studs you need.
  • 40′ x 12″= 480 lineal inches
  • 480″ ÷ 22″ = 21.80 studs bays to fill
  • Standard 40′
    • CX-LPSW Studded Insert per stud bay(4pcs.) = (1) 8′ Stud
      • 21.80 x 4 LowPro Studs needed per bay = 87.2 LP studs needed per side.
  • High Cube 40′
    • CX-LPSW Studded Insert per stud bay(4.5 pcs.)= (1) 8′ 6″ Stud
      • 21.80 x 4.5 LowPro Studs needed per bay = LP 99.18 studs needed per side.

Part Code: CON-SWLP-40ST

Estimating Chart
Complete Interior Insulation for a Container; 20′ Standard 20′ High Cube 40′ Standard 40′ High Cube
LowPro Insulated Studs/Inserts Sidewall Sidewall Sidewall Sidewall Sidewall
CX-LP 46 LowPro Insulated Stud 2 2 4 4
CX-LP 15 LowPro Insulated Stud 1 1 0 1
Sidewall Inserts: 2 2 4 4
Box Total: 5 5 8 9
Endwall (Container) LowPro-Bundle Endwall Endwall Endwall Endwall
Endwall LowPro-Kit 1 1 1 1
Ceiling 2.0 Flat Panel-Bundle Ceiling Ceiling Ceiling Ceiling
2.0 Flat Panel (UX) 4 4 8 8
Inserts: Ceilings 1 1 2 2
Box Total: 5 5 10 10
Door 2.5 Flat Panel-Bundle (2) Doors Door Door Door Door
2.5 Flat Panel (EXe) 2 2 2 2
Floor 2.0 Flat Panel-Bundle Floor Floor Floor Floor
2.0 Flat Panel (UX) 4 4 8 9

Total Box Count: 17 17 29 31

Foam Board Insulation by others: 3/4″ x 4′ x 8′ 3/4″ x 4′ x 8′ 3/4″ x 4′ x 8′ 3/4″ x 4′ x 8′
Sidewall 14.67 16.25 29.67 31.75
Total 4×8 Panel Count 15 17 30 32
Estimating Adhesive

LOCTITE® PL PREMIUM® POLYURETHANE CONSTRUCTION ADHESIVE

New Look Buy Shipping Container Insulation Panels in Monroe, NC

Green Guard Certified Adhesive:

In Canada the Glue is LePage PL Premium

Estimating Adhesive Quantity

Estimating the amount of adhesive YOU will use has variables beyond our control like condition of your walls and how accurate are you with a glue gun? The example below is for one side wall of a 20′ standard height shipping container you will need approximately 3 tubes of the adhesive. That is in a perfect world. PL Premium 3x adhesive is applied in a ⅜” bead on the backside of the studs onto the ribbed surfaces.  We realize that a 3/8″ bead of glue is very subjective. It is important that there is enough adhesive to squish the dovetails on the back side of the stud when pressed to the container wall. Adhesive follows the “Goldie Locks rule, too much, too little, and just right To verify that enough adhesive is used, press the panel into place. Pull the panel back and check to see if the adhesive has spread out beyond the full width of the stud. It is normal for the panel to “float out” from the side of the container when it is accommodating irregularities in the container walls. Additional adhesive may be necessary in some areas. If you are doing it just right you can expect that 1 large 28-fl oz tube will cover 18 of our 24″ long studs or enough glue at a 3/8″ bead to cover 36 foot long bead of glue.

Additionally you will have to estimate for glue around openings like windows and doors.

1 large 28-fl oz / 828 mL tube = 18 (24″ studs or inserts)

  • CX-LP 46 (46 studs) = 46
  • 46 ÷ 18 = 2 1/2 tubes of the adhesive
  • CSW (30) = 1 tube of the adhesive
LOCTITE® PL PREMIUM® POLYURETHANE CONSTRUCTION ADHESIVE Rough estimate for  28 ounce tubes of adhesive required
Container Side Wall  End Wall Ceiling  Total Walls & Ceiling Floors Swing Doors Total Estimate
20′- Standard 2 1/2  6 1/2 13 7 3 23
20′- High Cube 2 1/2  6 1/2 14 7 3 24
40′- Standard 6 2 1/2  13 28 14 3 45
40′- High Cube 2 1/2  13 29 14 3 46

Important Notice: Container Surface Temperature Applications

When bonding EPS and XPS foam insulation, use above 40°F (4°C) and avoid cure and surface temperatures above 90°F (32°C). Surfaces must be clean, dry and free of frost, grease, dust and other contaminants. Pre-fit all materials and protect finished surfaces. If using cartridge format, cut nozzle at a 45° angle to desired bead size and puncture inner seal. Be very careful not to allow Loctite® PL® Premium to cure on a finished surface.

Cold Weather Tips:

Interior Installation of a Shipping Container

In cold conditions below 40°F (4°C), heating the interior space of the container will not be sufficient for the adhesive to cure. The insulation panels will not allow heat to transfer to the container’s bonding surface.  It is recommended to either move the container to a heated area or tent and heat the exterior until the adhesive cures.

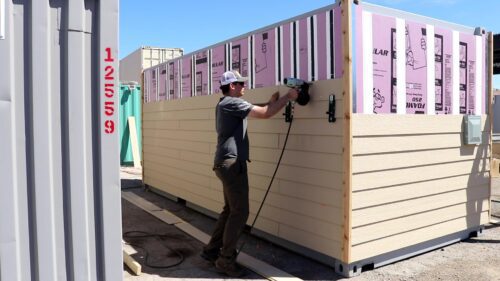

Exterior Installation

The interior of the container can be heated until the adhesive has cured.

Interior and Exterior Installation

Install the exterior panels first while heating the interior.  Allow adhesive to cure before installing interior insulation.

Overview / FeaturesTechnical Data / Directions

Shipping, Purchasing & Returns
Please read all the current Shipping, Purchasing & Returns *
Freight Dimensions Weight
We offer free curb side deliveries on most of our orders.

You may upgrade your delivery service for an additional charge. LIFT GATE SERVICE IS AN ADDITIONAL CHARGE. Please read through our shipping and purchasing policies, for more details before placing your order.

Product Code

Number of Parts

Per Box Dimension

Cubic Feet Per Box

 Weight Per Box

Length

Width

Height

CX -LPSW

46 pcs = 92 lnft

14″

26″

44″

9.27

28 Lbs

CX -LPSW

46 pcs = 92 lnft

14″

26″

44″

9.27

28 Lbs

CX -LP15

15 pcs = 30 lnft

20″

26″

12″

3.61

9 Lbs

I-SWI Side Wall Inserts

30 pcs 4′ = 120 lnft

11″

25″

49″

7.80

12 Lbs

Add R-Value with InSoFast PLUS

It’s easy to increase your R-Value beyond R-10 while maintaining the engineered benefits of the continuous InSoFast panels. Just start with a base of feature-rich InSoFast panels.
